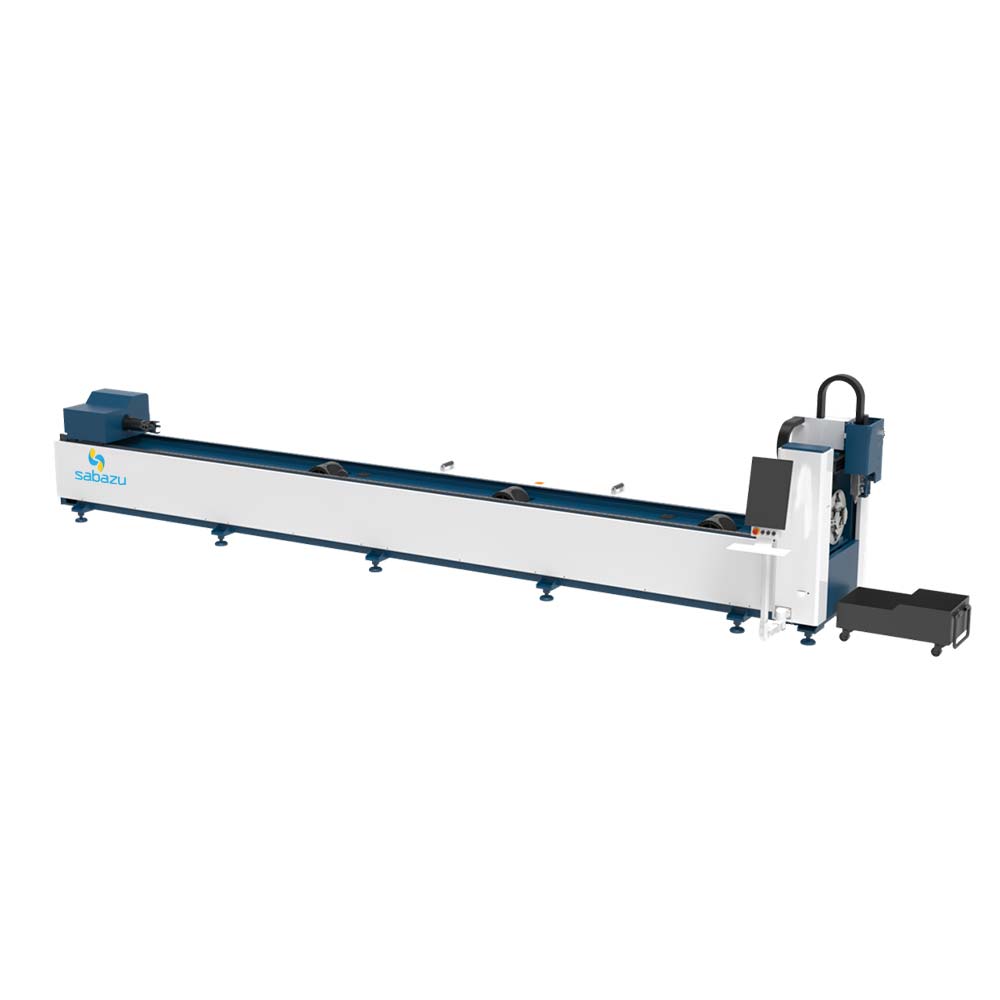

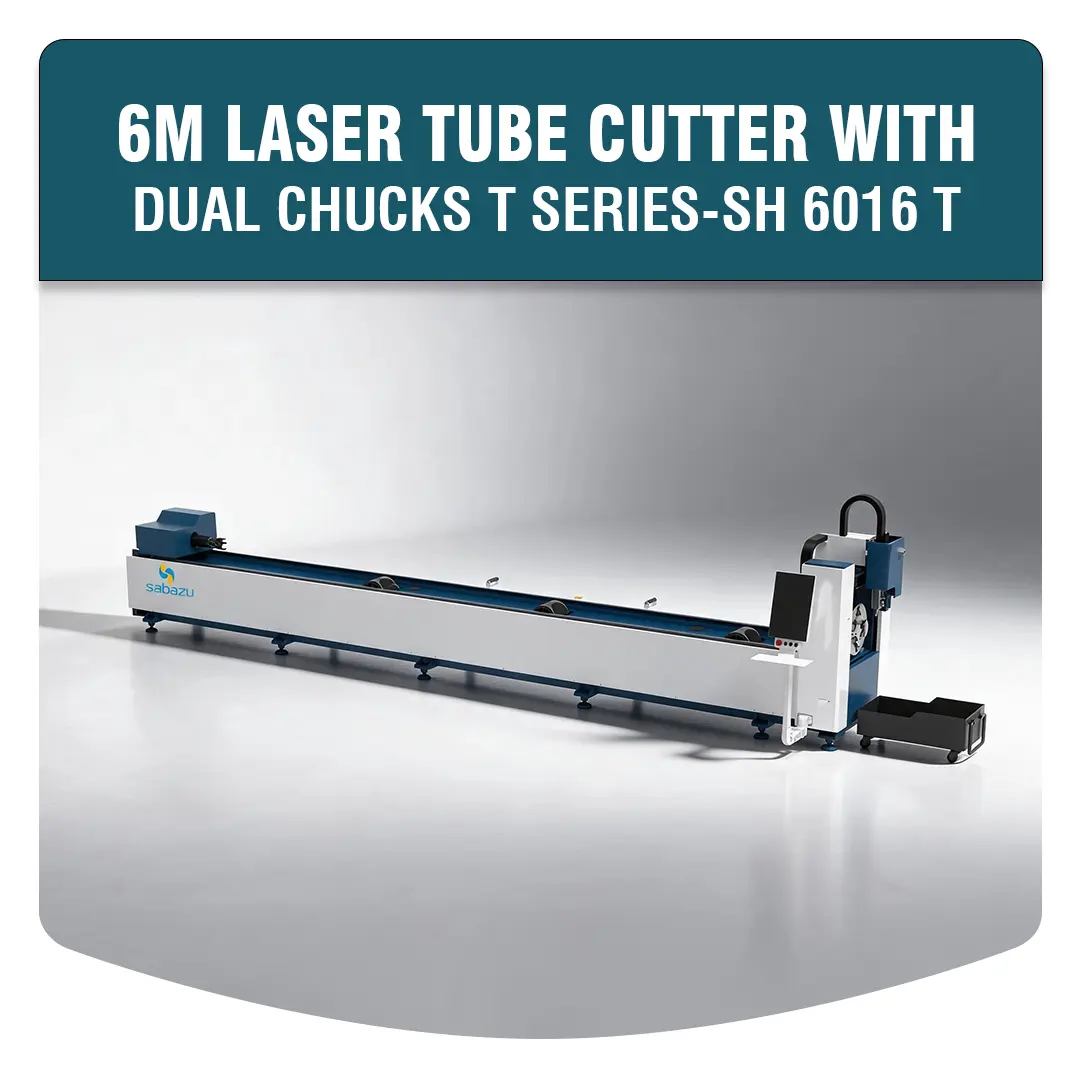

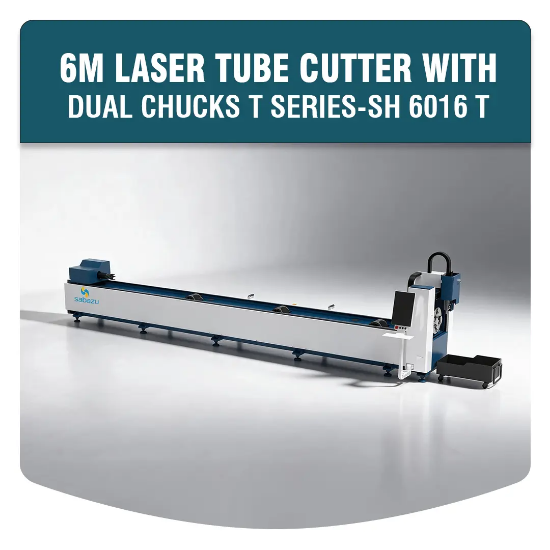

Tube Laser Cutting Machine — T Series

Key Features & Benefits

1. Wide Cutting Range
   Capable of cutting tubes in various shapes and sizes:

   • Maximum Tube Length: 6500 mm

   • Round Tube: Φ15 – 360 mm

   • Square Tube: □15 × 15 ~ 360 × 360 mm

   • Rectangular Tube: Diagonal ≤ 360 mm

2. Ultra-Short Tailing
   The SABAZU T Series comes standard with two precision self-centering chucks, ensuring high-precision clamping and minimal tailing after cutting — resulting in cleaner parts and less post-process work.

3. Superior Cutting Speed
   Thanks to its exceptional dynamic performance and the use of premium components, the T Series achieves cutting speeds approximately 70% faster than comparable systems.

   • Maximum Chuck Rotating Speed: 180 rpm

   • Maximum No-Load Linear Speed: 150 m/min

4. Intelligent and User-Friendly Operation
   Equipped with the latest generation of intelligent control software, the machine continuously monitors key operating parameters in real time. This significantly reduces manual intervention and helps prevent operator errors.

5. Handles High-Reflectivity Materials
   The advanced laser generator and multi-layer anti-reflective optical design enable smooth and efficient cutting of highly reflective metals such as stainless steel and aluminum alloys.

6. Versatile Application Scope
   The SABAZU T Series is ideal for cutting a variety of profiles with high precision, including:

   • Round, square, rectangular, and oval tubes

   • I-beams, H-shapes, C-profiles

   • Channels, angles, and other structural steel sections

Technical Specifications

• Laser Power: 1.5 – 6 kW

• Max Tube Length: 6500 mm

• Tube Diameter / Size Range: 15 – 360 mm

• Max Tube Weight: 120 – 500 kg
