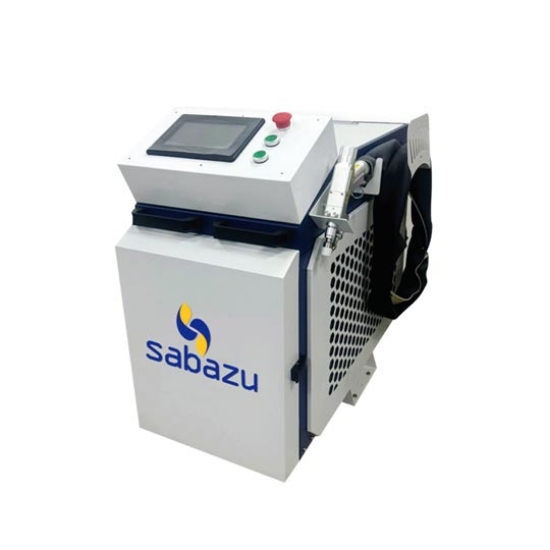

Machine Details
Nominal Max Output Power: 2000w
Wavelength: 1064nm
Working Environment: 10-40°C
Supply Voltage: 220v 50Hz/60Hz
Gross Weight: 110kg
Dimension (mm): 1590*820*1500mm
Cooling Chiller: Industrial Water Chiller
Machine Configuration
1, Laser Source: 2000w
2, Control System: Chaoqiangweiye
3, Hand-held Laser Head: Chaoqiangweiye
4, Machine Appearance: Sabazu Laser
5, Water Chiller: Hanli
6, Wire Feeder: Chaoqiangweiye
Compare with Traditional Welding
| | Handheld Laser welding machine | Traditional welding |
| Welding speed | 4-10x faster | Common |
| HeatAffected zone | small | large |
| Deformation | small | large |
| Bond strength with base material | Excellent | Common |
| Subsequent processing | No or very little polish | Polish |
| Consumables | Little | any |
| Operation difficulty | Simple | Complicate |
| Operator safety | Safe | Not safe |
| Impact on the environment | Enviromental | Pollutional |
| Welding fault tolerance | Good | Good |
| Pendular welding | yes | No |
| Adjustable spot width | yes | No |
| Welding quality contrast | Excellent | Bad |
| Adjustable Welding mode | Six Mode | No |
Specifications
| Model | SN 2000 FIBER LASER WELDING MACHINE. 2000W |
| Cooling | Built-in Industrial Chiller（Purified water or distilled water） |
| Cable length | Fiber cable lenght 10m, Operable cable length 8m |
| Weld Head | Handheld Wobble welding head with six weld mode,one cutting mode,changeable nozzle for different welding processing |
| Wobble width | Adjustable 0-5mm |
| Protection Gas | Argon/Nitrogen Pressure 5-10L/min |
| User Interface | For Laser Control:Power,Frequency,Duty cycle. Motor control:working mode,Frequency,Spot width Gas control:Advance,Delay,Proportion |
| Language | Chinese-English-Russian-Korean-Vietnamese |
| Safty | Class 4 laser equipment,Machine with CE,FDA certificate. The machine comes with error alarm function，emergency stop,chiller alarm. |
| Power Requirement | 220±10% V AC, 50/60Hz Customization |
| Operating Ambient Temperature(℃) | 10~40℃ |
SN 2000W Laser Welding Capacity
| Material | Thickness Single side weld | Thickness Double side weld | Thickness Wire weld |
| Stainless steel | 5mm | 10 mm | 2.5mm |
| Galvanized steel | 5mm | 10 mm | 2.5mm |
| Mild steel | 5 mm | 10 mm | 2.5mm |
| Titanium alloy | 4 mm | 8 mm | 2.5mm |
| Aluminum | 4 mm | 8 mm | 1.8mm |
| Copper | 1.5 mm | 3 mm | 0.8mm |
Application
MaterialUsed for welding all kinds of stainless steel mirror words, stainless steel brushed words, stainless steel spherical characters, stainless steel paint characters, stainless steel spray words, stainless steel solid words, stainless steel plating words, stainless steel gold foil words, precision stainless steel characters, titanium flat words, titanium spherical surface word, seiko titanium, flat cooper, spherical copper, copper; copper antique, seiko aluminum, Iron paint (stainless steel, iron, low carbon steel), metal word welding, lighting and mould industry, optoelectronic communication devices, medical, electronics, copper parts, aluminum parts and small welding processing industry.
Fiber laser welding head
The product covers welding head/cleaning head and self-developed control system, and sets up multiple safety alarms and main Dynamic safety power-off and light-off settings. It is developed on the basis of the hand-held welding head that our company has produced in large quantities, and has the characteristics of high reliability and strong stability. This product can be adapted to various brands of fiber lasers, and the optical and water-cooled design is optimized so that the laser head can be work stably for a long time at 3000W
Fiber Laser sourse
Raycus/ Max / Adopting USA technology OEM Sabazu brand , the photoelectric conversion rate is greatly improved, the laser power is enhanced, and it has a better welding effect, and different configurations can be adopted to meet the needs of customers.
Automatic wire feeding device
Automatic mode and manual mode. If there is a gap within 0.5 mm, the wire feeder will not be selected. If the gap is greater than 0.5 mm, a wire feeding device must be selected. If the gap is 0.6mm, a 0.9mm wire can be used. If the gap is 0.8mm, 1.1mm wire can be used. If the gap is 1.0mm, you can use 1.3mm
Nozzle
Customized special nozzle for meet different work. Help use get the better welding effect. Whole machine very easy to learn, one person only need 10 minutes to become the skilled worker
