SH 3015 NP LASER CUTTING MACHINE

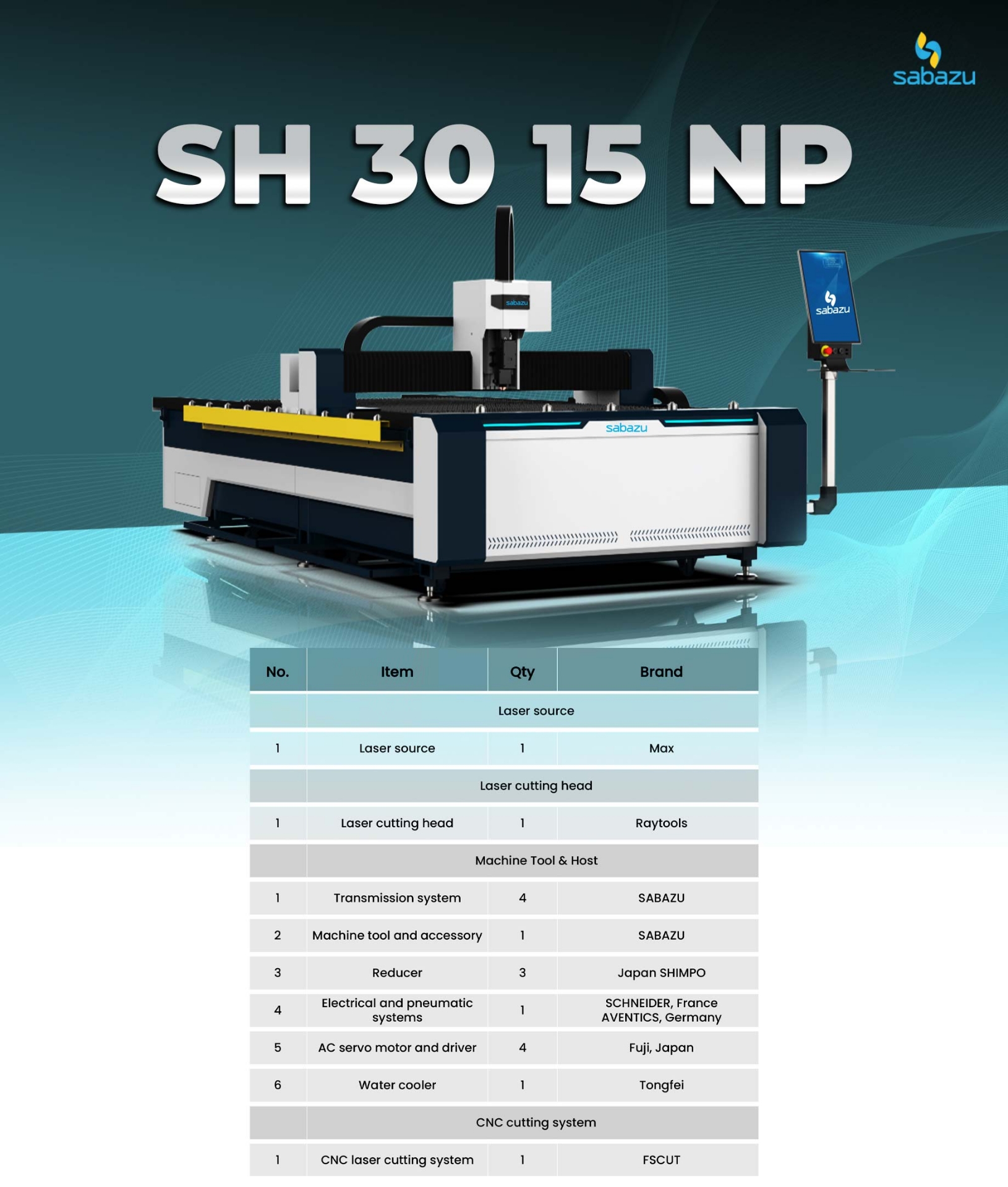

The Sabazu SH3015 Laser Cutting Machine (N-Series) is a technically enhanced yet cost-effective 2024 model engineered for medium-thin metal sheets (up to approximately 20 mm). It features a high-strength semi-hollow machine bed and a high-strength aluminum-alloy beam for rigidity with reduced mass. Equipped with a fully automatic focus mechanism and an intelligent following system, it ensures excellent cut quality even on mildly uneven surfaces. The machine is available in laser powers from 1.5 to 6 kW, supports sheet sizes ranging from 3050×1530 mm to 6050×2030 mm, achieves no-load traverse speeds of up to 100 m/min, and offers a work‐platform load capacity between 700-2000 kg. Its open-style structure and compact footprint make it especially attractive for workshops with limited plant area. SH 3015NP LASER SOURCE 1 MAX LASER CUTTING HEAD 1 RAYTOOLS TRANSMISSION SYSTEM 4 AIRTAC TAIWAN MACHINE TOOL AND ACCESSORY 1 AIRTAC TAIWAN REDUCER 3 JAPAN SHIMPO ELETRICAL AND PNEUMATIC SYSTEMS 1 SCHNEIDER , FRANCE AVENTICS ,GERMANY AC SERVO MOTOR AND DRIVER 4 FUJI JAPAN WATER COOLER 1 TONGFEI CNC LASER CUTTING SYSTEM 1 FSCUT 3-12 [kW] Laser power 3050*1530-6050*2030[mm] Sheet size 120 [m/min] Maximum no-load speed 2800[kg] Maximum Load
