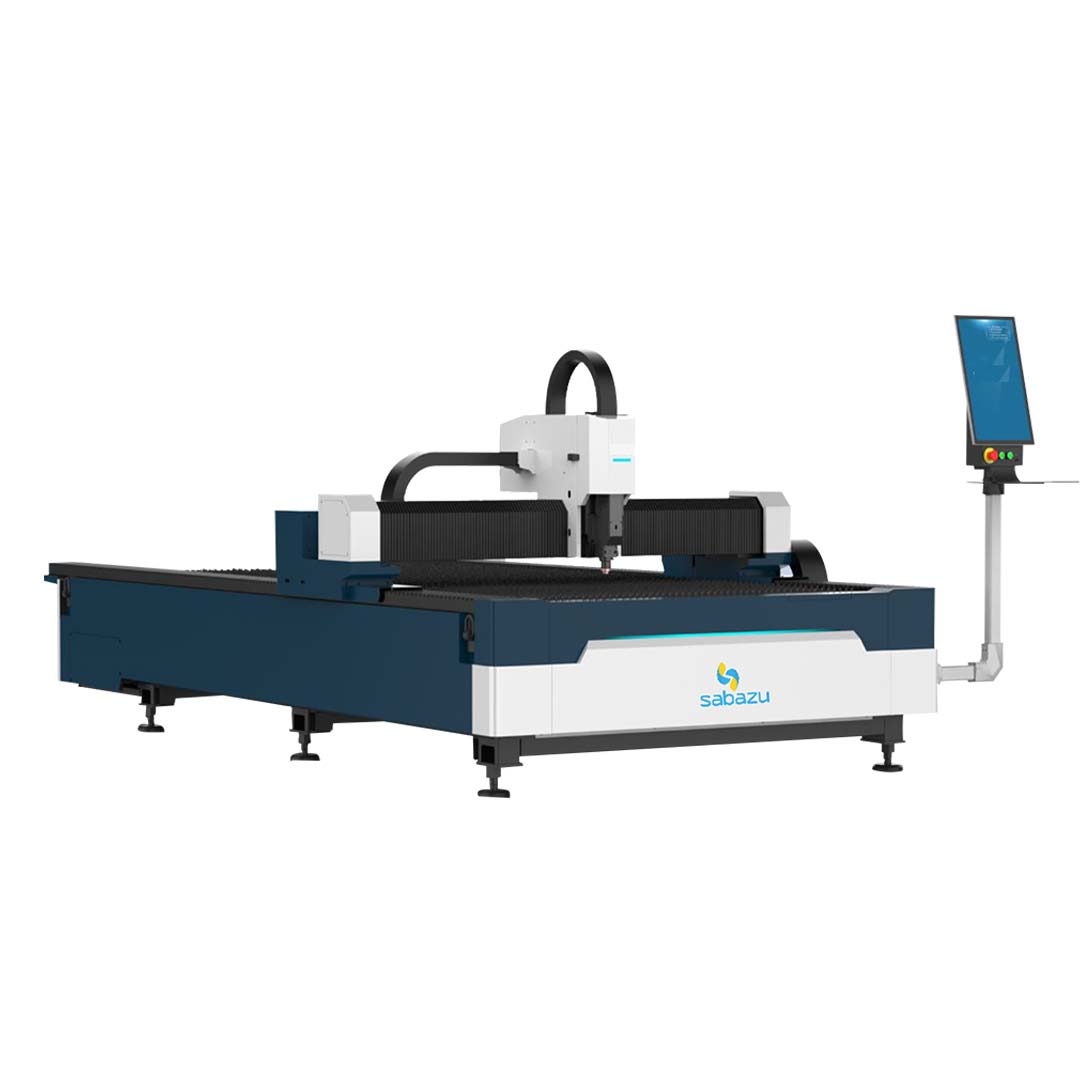

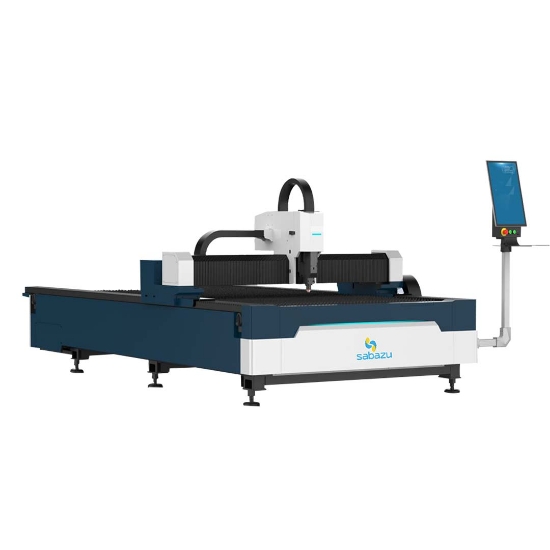

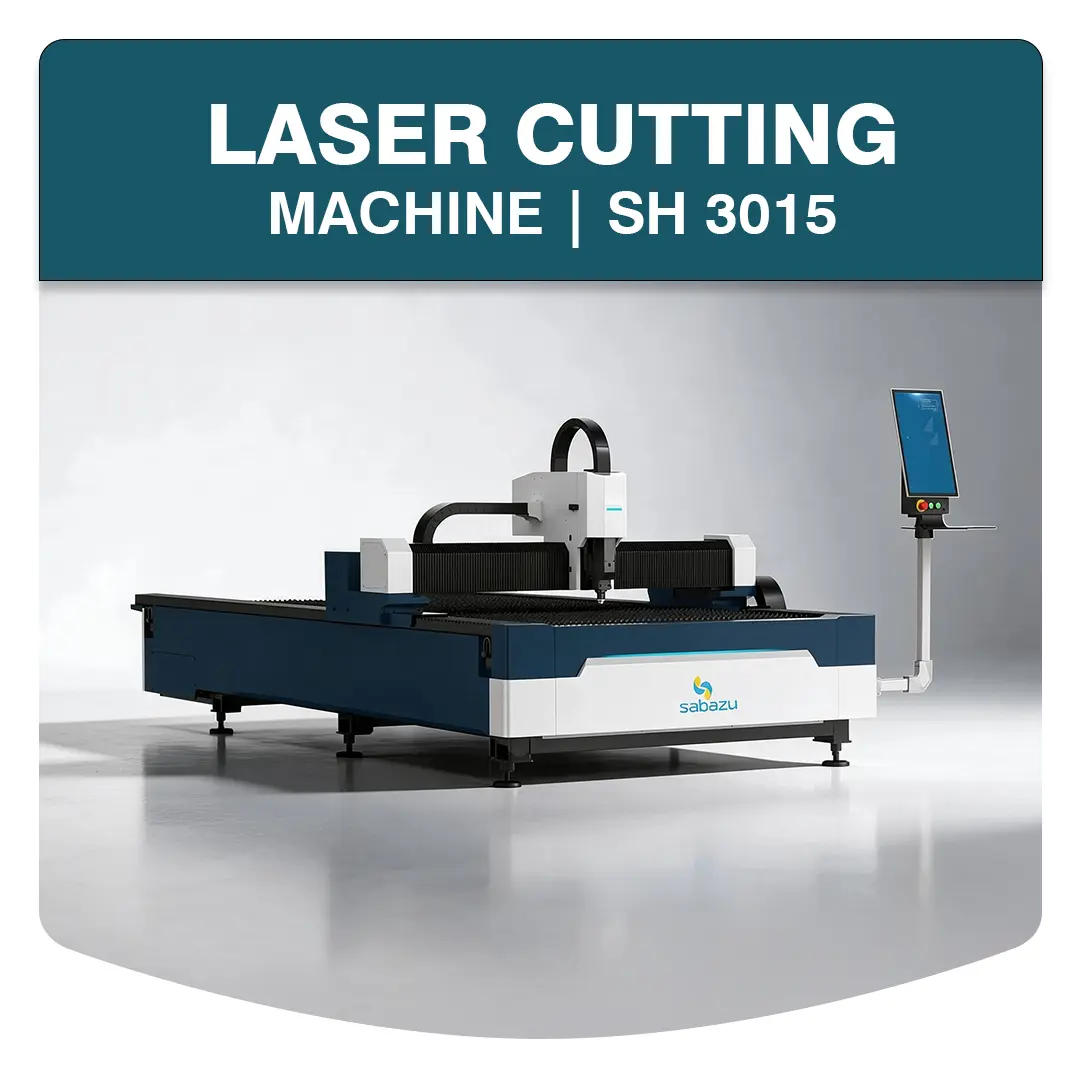

SH 3015 LASER CUTTING MACHINE

SABAZU SH3015 Laser Cutting Machine – Detailed Description

Sabazu SH3015 Laser Cutting Machine (N-Series) is a technically enhanced and cost-effective fiber laser cutting machine designed for precision cutting of medium- and thin-thickness metal sheets. It combines a rigid machine structure, lightweight high-strength beam, intelligent cutting functions, and a compact open-type design, making it suitable for workshops and industrial fabrication environments.

Key Features

1. High-Strength Machine Bed
The SH3015 uses a high-strength semi-hollow machine bed designed to provide excellent rigidity and stability during high-speed laser cutting. The structure helps maintain cutting accuracy while reducing unnecessary machine weight.

2. High-Strength Aluminum-Alloy Beam
The machine is equipped with a high-strength aluminum-alloy beam. Its reduced mass supports faster movement while maintaining the rigidity required for precise cutting operations.

3. Automatic Focus System
The machine features a fully automatic focusing mechanism, allowing the cutting head to automatically adjust the focal position according to the material and cutting requirements. This helps improve cutting consistency and quality.

4. Intelligent Following System
An intelligent following system allows the cutting head to maintain an appropriate distance from the sheet surface. This is particularly useful when working with sheets that have mild surface unevenness, helping maintain stable cutting performance.

5. Laser Power Options
The SH3015 N-Series is available in laser power configurations from:

1.5 kW – 6 kW

This range provides flexibility for different metal-cutting requirements.

6. Cutting Thickness
The machine is engineered primarily for medium-thin metal sheets, with cutting capability of approximately up to 20 mm, depending on the material, laser power, and cutting conditions.

7. Sheet Size Options
The SH3015 supports different working-area configurations, ranging from:

• 3050 × 1530 mm
• Up to 6050 × 2030 mm

This allows the machine to be configured according to the customer's production requirements and available workshop space.

8. High-Speed Movement
The machine can achieve a maximum no-load traverse speed of up to 100 m/min, supporting efficient positioning and reducing non-cutting movement time.

9. Work Platform Load Capacity
Depending on the machine configuration, the working platform supports approximately:

700–2000 kg

This makes it suitable for handling substantial metal sheets during fabrication operations.

10. Open-Type Structure
The SH3015 features an open-style machine structure, providing convenient access to the working area for loading and unloading sheets.

11. Compact Footprint
Its relatively compact design makes the SH3015 particularly suitable for workshops with limited plant or floor space, while still providing a useful working area for metal-sheet fabrication.

Typical Applications

The SH3015 can be used for precision cutting applications involving metal sheets in areas such as:

• General metal fabrication
• Sheet-metal manufacturing
• Industrial equipment manufacturing
• Machine-component production
• Electrical and control-panel fabrication
• Automotive component fabrication
• HVAC and ducting components
• Signage and metal decoration
• Agricultural machinery components
• Custom fabrication workshops

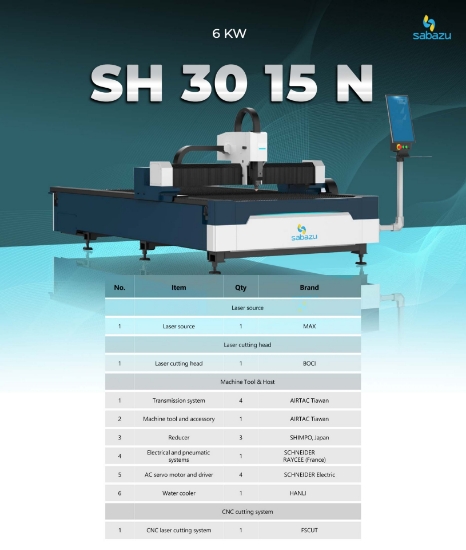

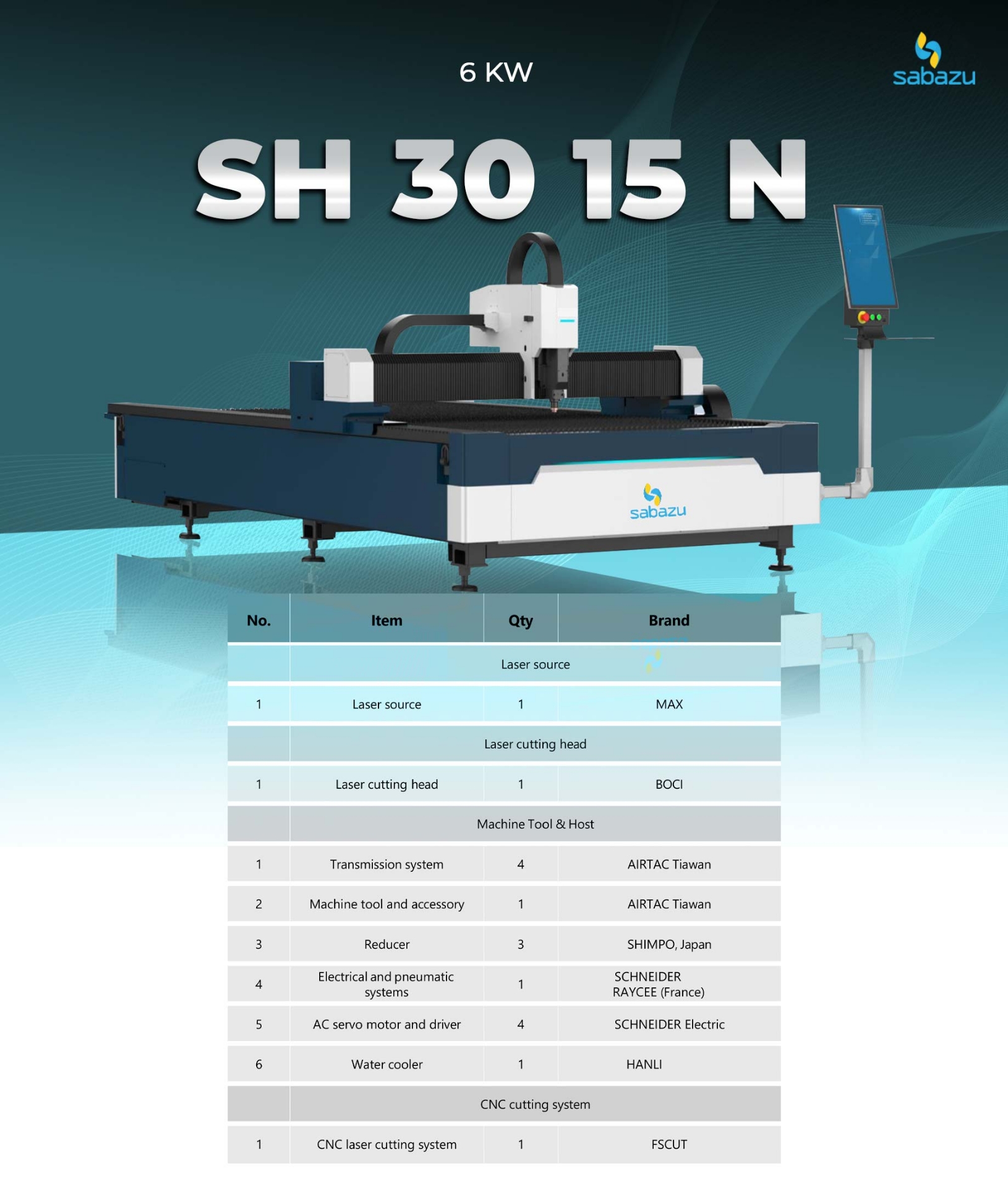

• Parameter	SH3015 N-Series
  Machine Type	Fiber Laser Cutting Machine
  Series	N-Series
  Laser Power	1.5–6 kW
  Approx. Cutting Thickness	Up to 20 mm
  Working Size	3050 × 1530 mm to 6050 × 2030 mm
  Maximum No-Load Traverse Speed	Up to 100 m/min
  Platform Load Capacity	700–2000 kg
  Machine Bed	High-strength semi-hollow bed
  Beam	High-strength aluminum alloy
  Focus	Fully automatic
  Following System	Intelligent following
  Machine Structure	Open type
  Main Advantage	Compact, rigid and cost-effective
