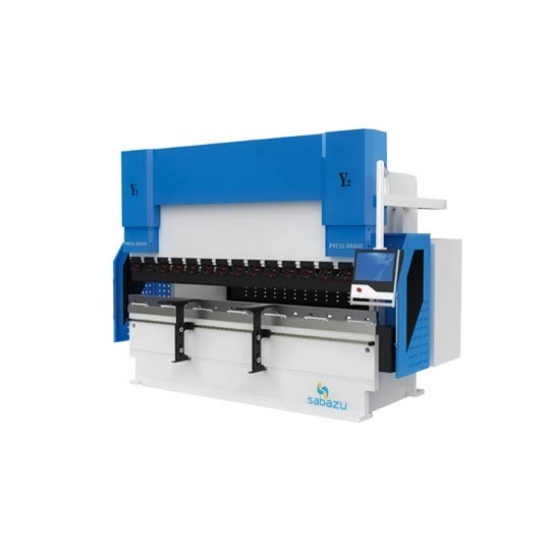

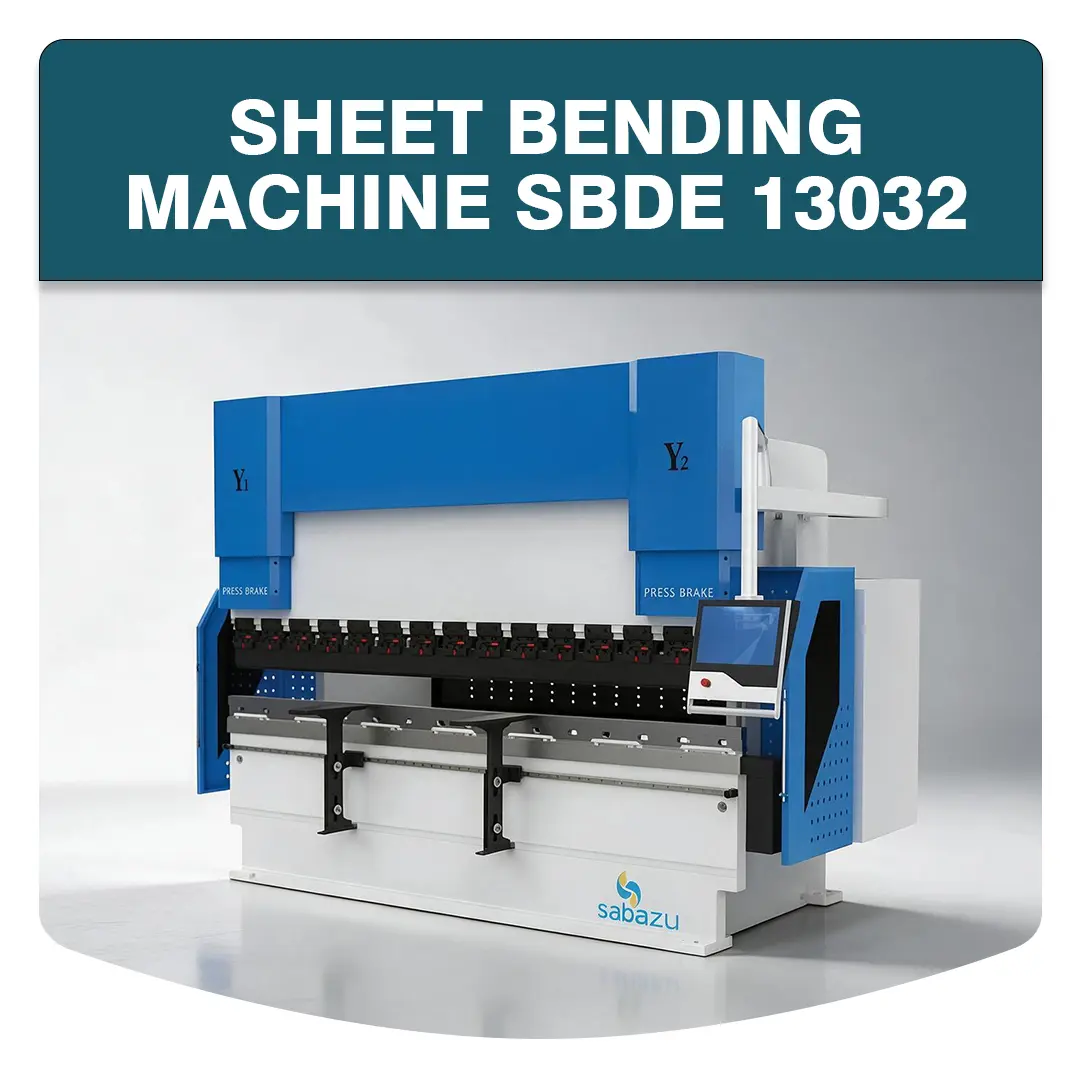

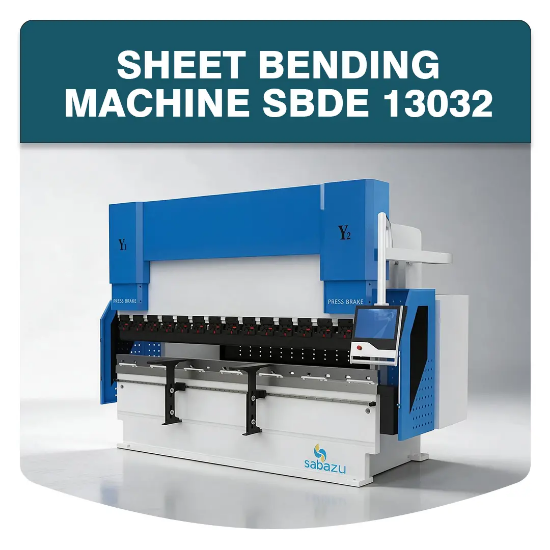

SABAZU SBDE 13032
CNC Sheet Bending Machine / Press Brake
SABAZU SBDE 13032 is an industrial sheet bending machine designed for accurate and efficient bending and forming of metal sheets. It is suitable for general fabrication, engineering, and industrial sheet-metal applications.
The machine is supplied with a complete set of standard tooling and accessories to support installation, operation, adjustment, and routine maintenance.
| Component | Specification / Brand |
|---|
| CNC System | Delem DA53T – Netherlands |
| CNC Axis | Y1-Y2-X-R-V |
| Hydraulic System | Rexroth – Germany |
| Oil Pump | SUNNY – America |
| Cylinder | HEYAN – China |
| Main Motor | Innomotics – Germany |
| Grating Ruler | SENTEК – Turkey |
| Main Electrical Components | Schneider – France |
| Mechanical Deflection Compensation | V-axis – Huangshi, China |
| Safety Module | Optional – DSP, Italy |
| | SBDE13032 |
|---|
| Model | SBDE13032 |
| Maximum Bending Force | 1300 kN |
| Bending Length | 3200 mm |
| Side Racking | 2600 mm |
| Throat Depth | 400 mm |
| Maximum Cylinder Stroke | 200 mm |
| Distance Between Table & Upper Beam | 480 mm |
| Get-Down Speed | 180 mm/s |
| Working Speed | 0–10 mm/s |
| Return Speed | 160 mm/s |
| Main Motor Power | 11 kW |
| Machine Dimensions (L × W × H) | 3700 × 1515 × 2630 mm |
| Machine Weight | 8120 kg |
Key Features
- Precision sheet-metal bending and forming
- Heavy-duty industrial construction
- Upper and lower mould/die system
- Adjustable bending setup
- Back-finger arrangement for positioning the workpiece
- Foot-switch operation
- Standard tooling and accessories included
- Hydraulic and electrical schematics supplied
- Suitable for industrial fabrication applications
Standard Accessories
The SBDE 13032 is supplied with:
- Standard upper mould
- Standard lower mould
- Horns
- Adjusting bolts
- Front tray
- Back finger
- Foot switch
- Toolbox
- Wrenches
- Allen keys
- Flat-blade screwdriver
- Phillips screwdriver
- System user manual
- Hydraulic schematic
- Electrical schematic
Product Highlights
Brand: SABAZU
Model: SBDE 13032
Machine Type: Sheet Bending Machine / Press Brake
Operation: Industrial sheet bending and forming
Tooling: Upper & lower mould/die
Positioning: Back-finger arrangement
Operation Control: Foot switch
Application: Metal sheet fabrication and forming
Main Features
1. High-strength machine bed
The brochure describes a heavy-duty machine structure using high-strength steel plates, with annealing/stress-relief treatment to improve rigidity, strength and stability.
2. Bending compensation system
The machine includes a vertical plate compensation system to compensate for deformation during bending and improve bending accuracy.
3. Mechanical deflection compensation
The V-axis mechanical compensation system is designed to compensate for beam/table deformation during bending, helping maintain consistent bending accuracy.
4. Backgauge system
The brochure describes a high-precision backgauge system designed for accurate positioning of the sheet during bending.
5. Front support system
The front support rack uses rollers and can be adjusted along the linear guide, allowing the operator to adjust the support position and height.
6. Rexroth hydraulic system
The German Rexroth hydraulic system is described as providing high-frequency response, integrated amplification, precision position feedback and closed-loop control.
7. Delem DA53T CNC control
The brochure lists the Delem DA53T CNC system with features including:
- 10.1" high-resolution colour TFT
- Touch-screen operation
- Up to 4 axes
- Tool/material/product library
- Servo and frequency-inverter control
- Advanced Y-axis control algorithms
- Closed-loop and open-loop valve control
- USB memory stick interface
- Profile-T offline software
- TandemLink option
These features are shown on page 7.
Standard Tooling

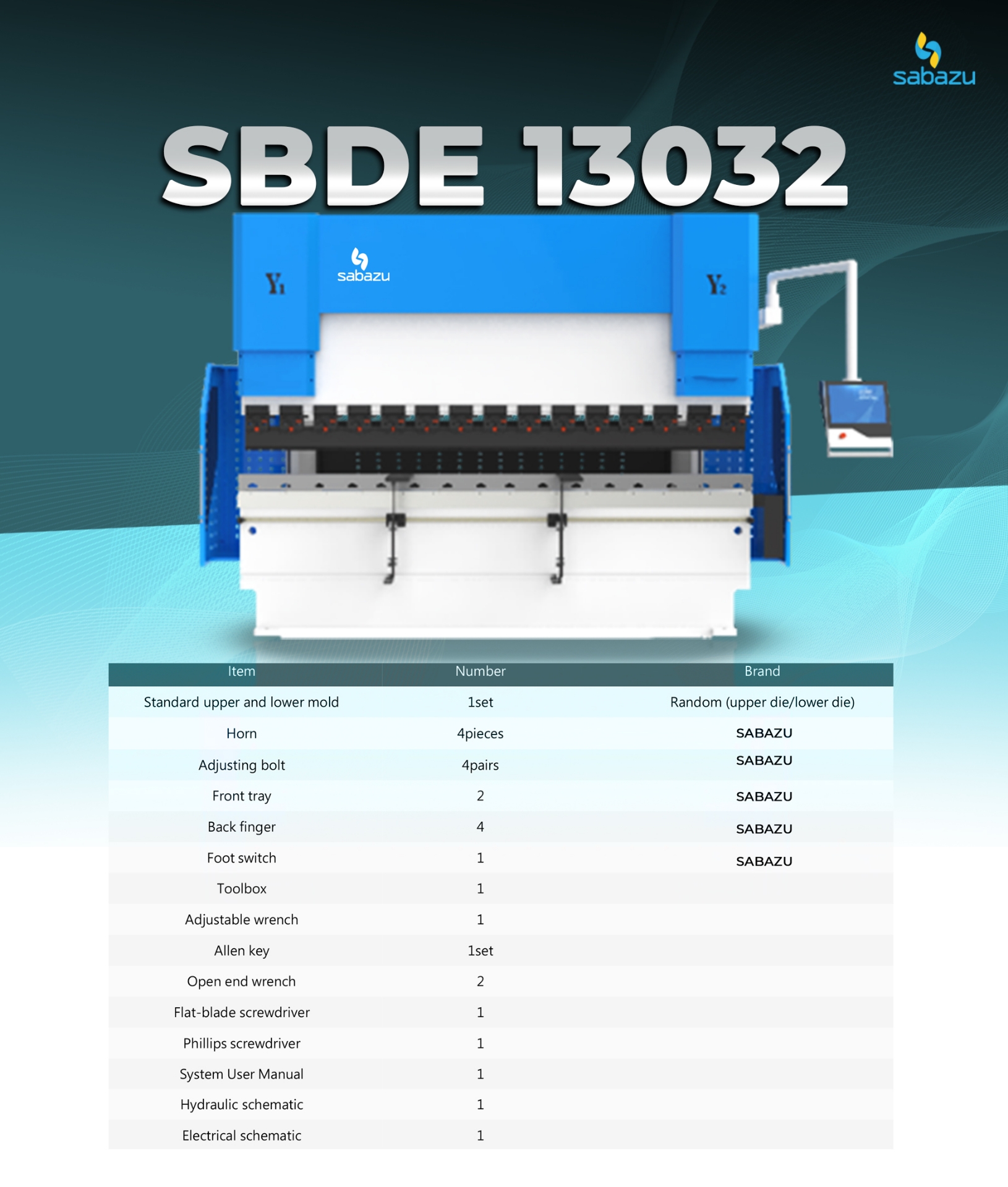

The brochure includes standard punches and dies, with tooling configurations shown on pages 8–9. It also lists accessories such as:
- Standard upper and lower mould
- Horn – 4 pieces
- Adjusting bolt – 4 pairs
- Front tray – 2
- Back finger – 4
- Foot switch – 1
- Toolbox – 1
- Adjustable wrench – 1
- Allen key set – 1
- Open-end wrench – 2
- Flat-blade screwdriver – 1
- Phillips screwdriver – 1
- System user manual – 1
- Hydraulic schematic – 1
- Electrical schematic – 1
Applications
According to the brochure, the SBDE13032 can be used for bending:
- Stainless steel
- Carbon steel
- Galvanized sheet
- Fluoro-aluminium-zinc sheet
- Copper
- Aluminium
- Brass
Applications shown include electrical cabinets, kitchenware/refrigerators, curtain walls, elevator/furniture components, and ventilation/fan-industry products.
Short description for your website/catalog
SABAZU SBDE13032 CNC Bending Machine is a 1300 kN CNC press brake with a 3200 mm bending length, designed for precision sheet-metal bending. It features a Delem DA53T CNC controller, Rexroth hydraulic system, high-strength machine frame, precision backgauge and mechanical deflection compensation, making it suitable for fabrication, electrical cabinets, kitchen equipment, HVAC, elevator components, furniture and general sheet-metal manufacturing.
