Product Overview

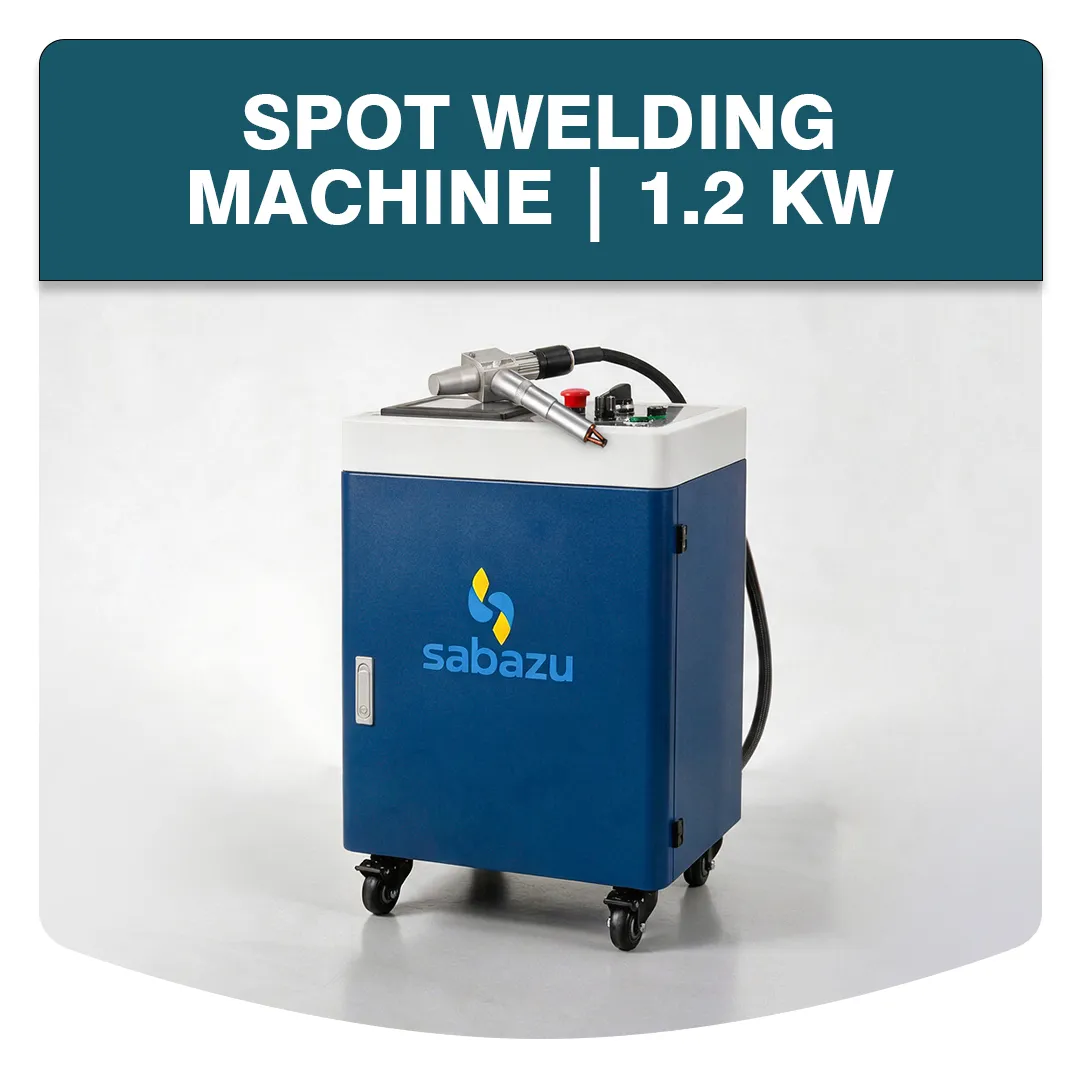

The SABAZU SP 1200 1.2 kW Fiber Laser Spot Welding Machine is a compact, high-performance metal welding solution designed for precision spot welding and versatile handheld laser welding applications. Equipped with a 1200 W Raycus Continuous Wave (CW) fiber laser source and a handheld swing spot welding head, the machine delivers concentrated laser energy for efficient, controlled and consistent welding.
The machine features a water-cooling system integrated with a Hanli 2 kW industrial chiller, ensuring effective temperature management and stable operation during welding processes.
With multiple welding patterns, including square, round, straight line and dot, the SP 1200 offers flexibility for different metal fabrication requirements. Its 220V single-phase electrical configuration makes it suitable for workshops, fabrication units and industrial production environments.
Key Product Highlights
Brand: SABAZU
Model: SP 1200
Laser Power: 1200 W (1.2 kW)
Laser Source: Raycus Fiber Laser
Operating Mode: Continuous Wave (CW)
Laser Wavelength: 1080 ± 10 nm
Welding Head: Handheld Swing Spot Welding Head
Cooling System: Water-Cooled
Industrial Chiller: Built-in / integrated Hanli 2 kW Industrial Chiller
Power Supply: 220V AC, Single Phase
Welding Patterns: Square, Round, Straight Line and Dot
Maximum Applicable Laser Power of Head: ≤ 3000 W
Detailed Technical Specifications
1. General Specifications
| Parameter | Specification |
|---|
| Product Name | Fiber Laser Spot Welding Machine |
| Brand | SABAZU |
| Model Number | SP 1200 |
| Laser Source | Raycus |
| Laser Technology | Fiber Laser |
| Laser Output Power | 1200 W / 1.2 kW |
| Operating Mode | Continuous Wave (CW) |
| Laser Wavelength | 1080 ± 10 nm |
| Welding Head | Handheld Swing Spot Welding Head |
| Welding Head Compatibility | Up to 3000 W |
| Welding Process | Handheld Laser Spot / Pattern Welding |
2. Electrical Specifications
| Parameter | Specification |
|---|
| Power Supply | 220V AC ±5% |
| Electrical Phase | Single Phase |
| Frequency | 50/60 Hz |
| Input Power | As per machine configuration |
3. Cooling System Specifications
| Parameter | Specification |
|---|
| Cooling Method | Water Cooling |
| Industrial Chiller Brand | Hanli |
| Chiller Capacity | 2 kW |
| Cooling Configuration | Integrated / Built-in Chiller |
| Cooling Purpose | Laser Source and Welding System Temperature Management |
4. Machine Operating Specifications
| Parameter | Specification |
|---|
| Working Environment Temperature | 10°C to 50°C |
| Operating Humidity | ≤ 70% |
| Adaptive Laser Beam Diameter | φ ≤ 10 mm (After Beam Collimation) |
| Vertical Focus Adjustment | ±10 mm |
| Air Flow Rate | 15–25 L/min |
5. Welding Performance
| Material | Maximum Welding Thickness |
|---|
| Stainless Steel (SS) | Up to 3 mm (1.5 mm + 1.5 mm) |
| Mild Steel (MS) | Up to 3 mm |
Welding capacity depends on material grade, joint configuration, surface condition, welding speed and process parameters. Actual performance should be confirmed through sample welding trials.
6. Available Welding Patterns
The handheld swing welding head supports multiple welding patterns to accommodate different joint geometries and welding requirements.
Square Pattern: Suitable for square or rectangular oscillation paths.
Round Pattern: Suitable for circular welding paths.
Straight Line Pattern: Suitable for linear welding applications.
Dot Pattern: Suitable for point-based welding applications.
Main Applications
The SABAZU SP 1200 is suitable for a wide range of metal fabrication and industrial welding applications, including:
Stainless Steel Fabrication
Mild Steel Fabrication
Commercial Kitchen Equipment Manufacturing
Stainless Steel Furniture Manufacturing
Sheet Metal Fabrication
Electrical Enclosures and Control Panels
Metal Cabinets and Equipment
Industrial Components and Assemblies
Metal Frames and Structures
General Engineering and Repair Workshops
Advantages of SABAZU SP 1200
High-precision 1.2 kW Raycus fiber laser technology.
Handheld swing welding head for flexible operation.
Multiple welding patterns for different joint configurations.
Integrated Hanli 2 kW industrial water chiller.
Stable water-cooling arrangement for thermal management.
Single-phase 220V electrical compatibility.
Compact industrial configuration.
Suitable for stainless steel and mild steel fabrication.
Designed for efficient metal joining and fabrication operations.
Machine Configuration
| Component | Description |
|---|
| Machine Brand | SABAZU |
| Laser Source | Raycus 1200 W Fiber Laser |
| Welding Head | Handheld Swing Spot Welding Head |
| Cooling System | Hanli 2 kW Industrial Water Chiller |
| Electrical System | 220V Single Phase |
| Laser Operating Mode | Continuous Wave (CW) |
Product Description
The SABAZU SP 1200 is an ideal solution for manufacturers and fabricators looking for a reliable, water-cooled 1.2 kW fiber laser welding machine. Combining Raycus laser technology, a handheld swing welding head and a Hanli industrial cooling system, it provides a versatile welding solution for modern metalworking industries.
SABAZU – Advanced Laser Technology for Modern Industrial Manufacturing.
