    Manufacturer: SABAZU

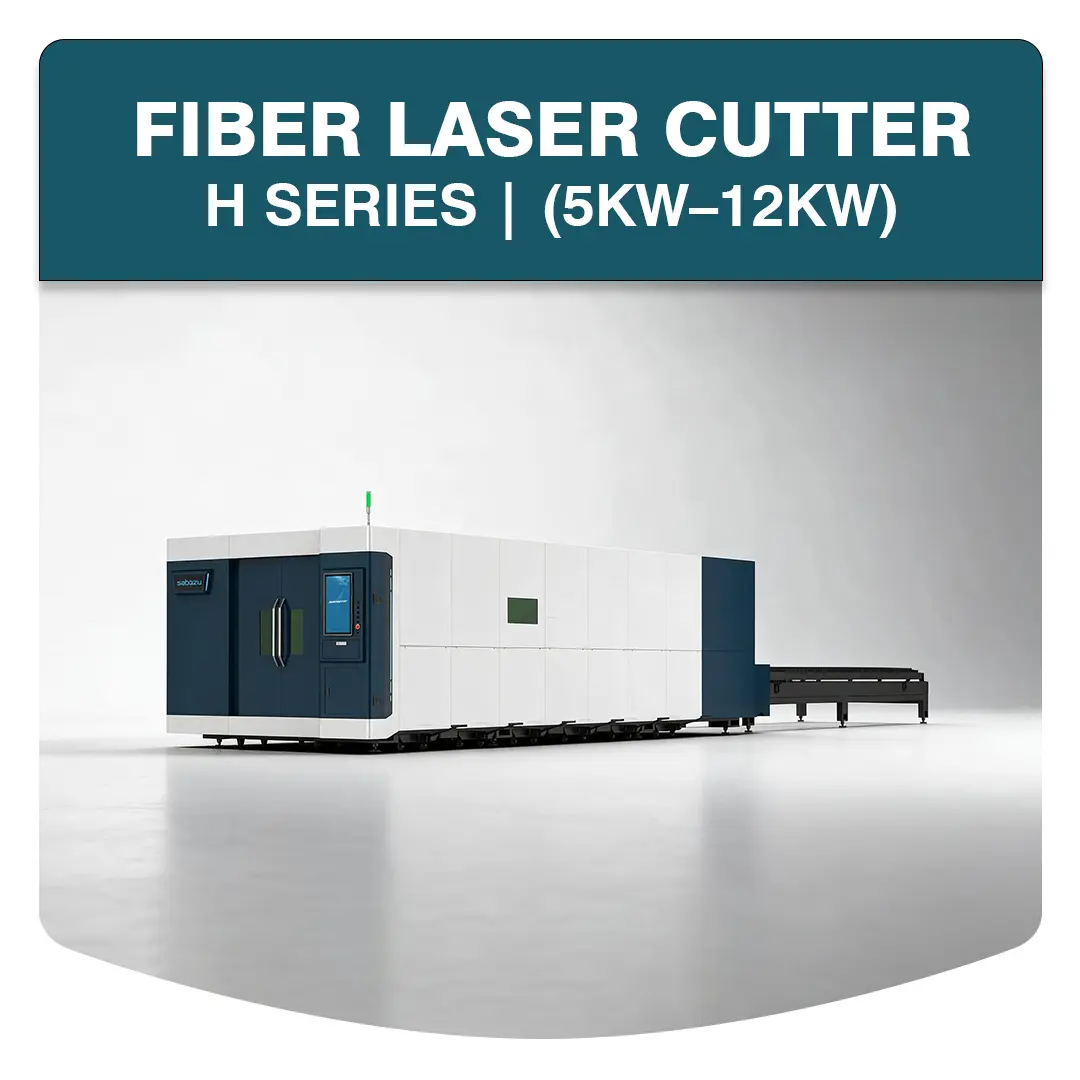

    SABAZU H Series Metal Sheet Fiber Laser Cutter (5 kW – 12 kW)

    High Cutting Power: Equipped with 5 kW–12 kW laser source options to handle a wide range of metal thicknesses with excellent edge quality. Efficient Production: The double exchange platforms allow one table to be loaded/unloaded while the other is cutting, reducing idle time and boosting throughput. Compact but Strong: Though powerful, the H Series has a smart, space-efficient design — ideal for shops where space is premium. Fully Enclosed Structure: Enhances safety, dust control, and work environment cleanliness, while conforming to laser safety standards. Reliable & Mature Design: Countless improvements based on global user feedback have refined performance, stability, and serviceability.
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Model3015H4015H4020H6015H6020H
    Laser Power (kW)5–125–125–125–125–12
    Working Area (mm)3050×15304050×15304050×20306050×15306050×2030
    X/Y Positioning Accuracy (mm)±0.05±0.05±0.05±0.05±0.05
    X/Y Repositioning Accuracy (mm)±0.02±0.02±0.02±0.02±0.02
    Max No-load Speed (m/min)130130130130130
    Max Load of Platforms (kg)11001500190022002900
    Overall Dimensions (L×W×H, mm)8520×2270×218010940×2270×220011064×3243×226014740×2270×220014900×3243×2260
    Power Supply3-phase 380 V, 50/60 Hz3-phase 380 V, 50/60 Hz3-phase 380 V, 50/60 Hz3-phase 380 V, 50/60 Hz3-phase 380 V, 50/60 Hz
