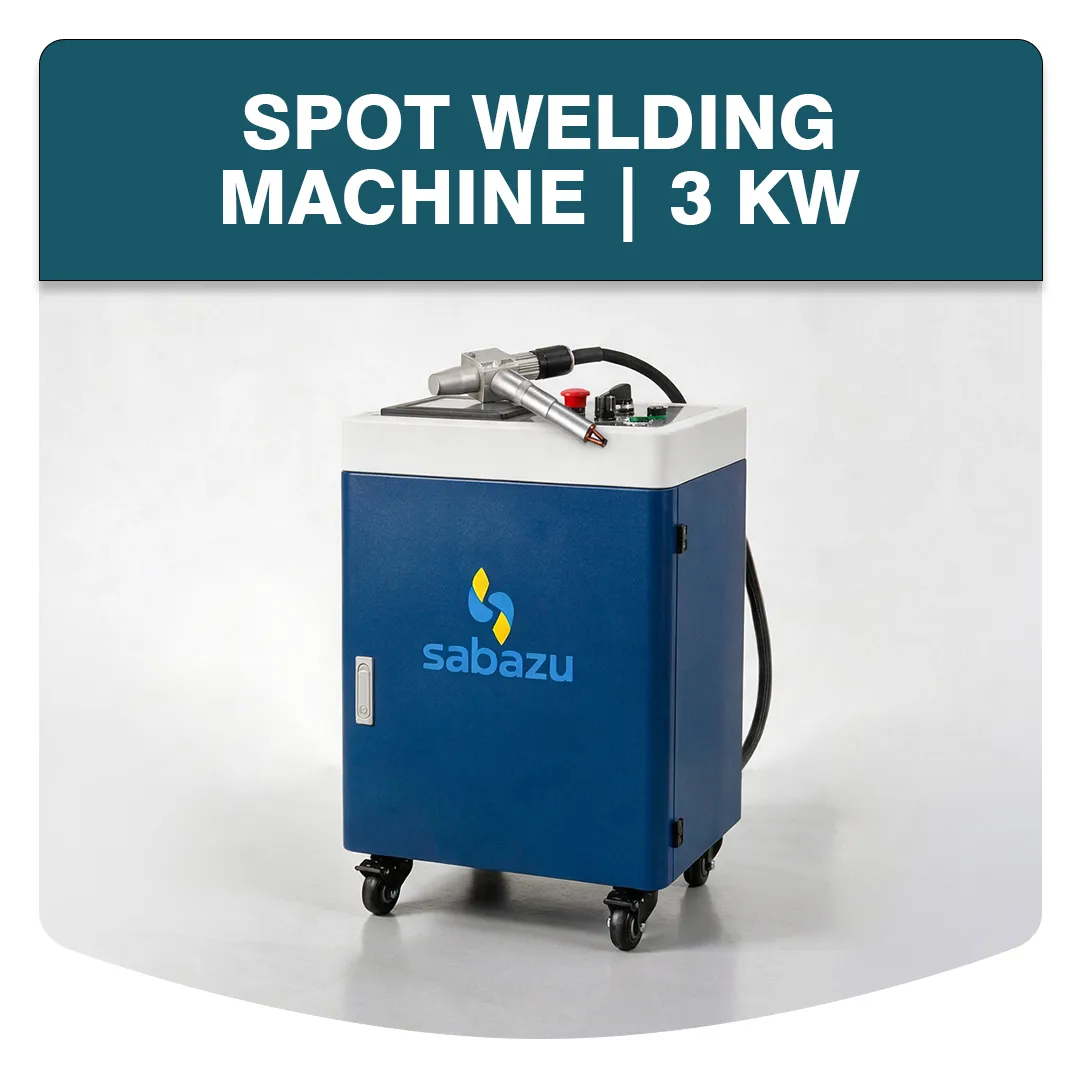

The SABAZU 3KW Fiber Laser Spot Welding Machine is a powerful industrial laser welding solution designed for precision welding, high-strength metal joints and advanced fabrication applications. Equipped with a 3000W Raycus Continuous Wave (CW) Fiber Laser Source, this machine delivers high laser output, stable performance and efficient welding capabilities for various metal materials.
Featuring the advanced SUP27S Water-Cooled Handheld Swing Welding Head, the machine supports multiple welding patterns, including spot welding, round, square, straight-line and spiral patterns. Its intelligent touchscreen control system with an integrated parameter library allows operators to select and adjust welding settings conveniently for different materials and applications.
The machine comes with an integrated industrial water chiller, water-cooled welding head and a standard 20-metre fiber delivery cable, ensuring reliable cooling and flexible operation in industrial environments.
Key Features:
Powerful 3000W (3KW) Raycus CW Fiber Laser Source.
SUP27S Water-Cooled Handheld Swing Welding Head.
Multiple Welding Modes: Spot, Round, Square, Straight Line and Spiral.
Adjustable Laser Power from 10% to 100%.
Intelligent Touchscreen Control System.
Integrated Welding Parameter Library.
Red Light Positioning Indicator.
Integrated Industrial Water Chiller.
Standard 20-Metre Fiber Delivery Cable.
High-performance QBH Fiber Output Connector.
Three-Phase 380V Industrial Power Supply.
Welding Materials:
Stainless Steel, Carbon Steel, Galvanized Steel, Aluminium and Brass.
Industrial Applications:
Heavy-Duty Stainless Steel Fabrication.
Industrial Kitchen Equipment Manufacturing.
Metal Furniture Manufacturing.
Sheet Metal Fa
1. General Specifications
| Specification | Details |
|---|
| Brand | SABAZU |
| Product Name | 3KW Fiber Laser Spot Welding Machine |
| Laser Source Brand | Raycus |
| Laser Source Type | Continuous Wave (CW) Fiber Laser |
| Laser Power | 3000W (3KW) |
| Laser Wavelength | 1080 ± 5 nm |
| Laser Power Adjustment | 10–100% |
| Laser Head Model | SUP27S |
| Laser Head Type | Water-Cooled Handheld Swing Welding Head |
| Welding Modes | Spot Welding, Round Pattern, Square Pattern, Straight Line and Spiral |
| Positioning System | Red Light Indicator |
| Control System | Intelligent Touch Screen |
| Parameter Control | Integrated Welding Parameter Library |
2. Electrical Specifications
| Specification | Details |
|---|
| Power Supply | 380V AC ±10% |
| Phase | Three Phase |
| Frequency | 50/60 Hz |
| Maximum Power Consumption | Approximately 10 KW |
3. Cooling System
| Specification | Details |
|---|
| Cooling Type | Industrial Water Cooling |
| Cooling Equipment | Integrated Industrial Water Chiller |
| Laser Head Cooling | Water Cooled |
| Cooling Method | Full Water Cooling |
4. Machine Specifications
| Specification | Details |
|---|
| Machine Dimensions (Without Wire Feeder) | 980 × 720 × 867 mm |
| Packing Dimensions | 1425 × 870 × 1080 mm |
| Net Weight | 196 KG |
| Gross Weight | 260 KG |
5. Laser Delivery System
| Specification | Details |
|---|
| Fiber Cable Length | 20 Metres (Standard) |
| Optional Fiber Cable Length | 10–20 Metres |
| Fiber Core Diameter | 50 μm |
| Beam Parameter Product (BPP) | 1.5–2 mm·mrad |
| Output Connector | QBH |
| Maximum Modulation Frequency | 5 kHz |
6. Welding Performance
| Material | Maximum Welding Thickness |
|---|
| Stainless Steel (SS) | Up to 8 mm |
| Carbon Steel (MS) | Up to 8 mm |
| Galvanized Steel (GI) | Up to 6 mm |
| Aluminium (Al) | Up to 6 mm |
| Brass | Up to 3 mm |
7. Shielding Gas Specifications
| Specification | Details |
|---|
| Shielding Gas 1 | Argon (Ar) |
| Shielding Gas 2 | Nitrogen (N₂) |
8. Main Features
3KW High-Power Raycus Fiber Laser Source.
SUP27S Water-Cooled Handheld Swing Welding Head.
Multiple Programmable Spot Welding Patterns.
Intelligent Touchscreen Control with Parameter Library.
Adjustable Laser Power (10–100%).
Red Light Positioning Indicator.
Integrated Industrial Water Chiller.
20-Metre Standard Fiber Cable.
QBH Fiber Output Connector.
Industrial Three-Phase Power Supply.
Designed for Heavy-Duty Metal Fabrication.
