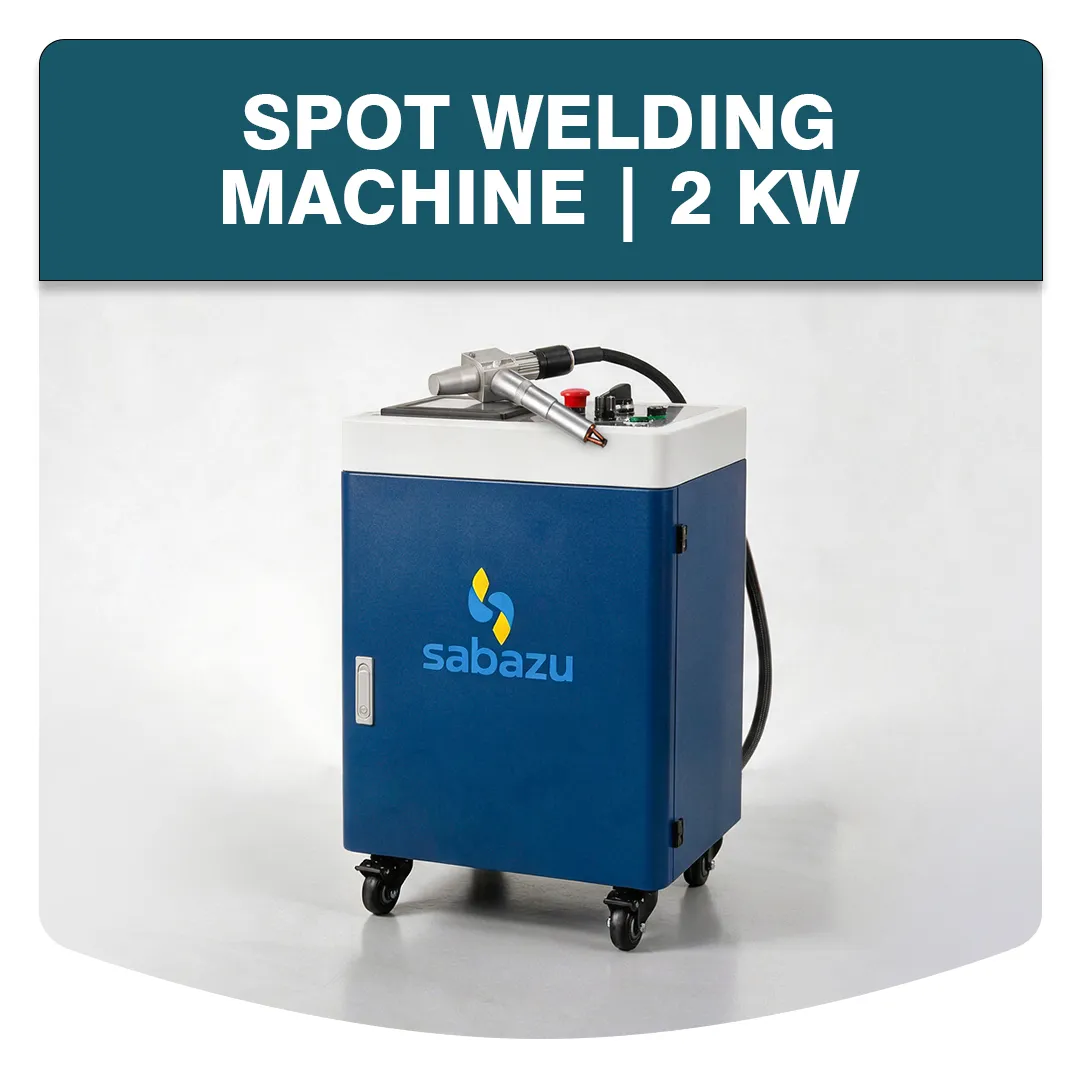

SABAZU 2KW Raycus Fiber Laser Spot Welding Machine
The SABAZU 2KW Fiber Laser Spot Welding Machine is a high-performance industrial welding solution designed for precision spot welding and advanced metal fabrication applications. Powered by a 2000W Raycus Continuous Wave Fiber Laser Source, this machine delivers strong welding performance, stable operation and high-quality weld joints.
Equipped with the advanced SUP27S Handheld Swing Welding Head, the machine supports multiple welding patterns, including spot welding, round, square, straight-line and spiral patterns. Its intelligent touch-screen control system allows operators to select preset welding parameters and conveniently adjust laser power from 1% to 100%.
The integrated industrial water cooling system ensures reliable cooling of the laser source and welding head during continuous operation. A 10-metre fiber delivery cable provides flexibility and convenience for different workshop applications.
Key Features:
2000W (2KW) Raycus Continuous Wave Fiber Laser Source.
SUP27S Handheld Swing Welding Head.
Dedicated Spot Welding Function.
Multiple Programmable Welding Patterns.
Intelligent Touch-Screen Control System.
Adjustable Laser Power from 1% to 100%.
Red Light Positioning Indicator.
Adjustable Spot Size / Swing Width up to 15 mm.
Integrated Industrial Water Chiller.
Water-Cooled Laser Welding Head.
10-Metre Fiber Cable (15-Metre Optional).
Welding Materials:
Stainless Steel, Carbon Steel, Galvanized Steel, Aluminium and Brass.
Industrial Applications:
Stainless Steel Kitchen Equipment Manufacturing.
Sheet Metal Fabrication.
Metal Furniture Manufacturing.
Stainless Steel and Aluminium Fabrication.
Electrical Cabinet Manufacturing.
Automotive Metal Components.
Industrial Equipment Manufacturing.
Metal Fabrication and Engineering Workshops.
The SABAZU 2KW Fiber Laser Spot Welding Machine is designed to improve welding productivity, provide precise weld positioning and deliver consistent results for industrial metalworking applications.
General Specifications
| Specification | Details |
|---|
| Brand | SABAZU |
| Product Name | 2KW Fiber Laser Spot Welding Machine |
| Laser Source Brand | Raycus |
| Laser Source Type | Continuous Wave Fiber Laser |
| Laser Power | 2000W (2KW) |
| Laser Wavelength | 1080 ± 5 nm |
| Laser Power Adjustment | 1–100% |
| Laser Head Model | SUP27S |
| Laser Head Type | Handheld Swing Welding Head |
| Welding Modes | Spot Welding, Round Pattern, Square Pattern, Straight Line and Spiral |
| Positioning System | Red Light Indicator |
| Control System | Intelligent Touch Screen |
| Welding Parameter Control | Preset Welding Parameters |
Electrical Specifications
| Specification | Details |
|---|
| Power Supply | 220V AC |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Maximum Power Consumption | ≤ 6.5 KW |
Cooling System
| Specification | Details |
|---|
| Cooling Type | Industrial Water Cooling |
| Laser Head Cooling | Water Cooled |
| Cooling Equipment | Integrated Industrial Water Chiller |
| Cooling Method | Full Water Cooling |
Machine Specifications
| Specification | Details |
|---|
| Machine Dimensions (L × W × H) | 968 × 660 × 826 mm |
| Packing Dimensions | 1425 × 870 × 1080 mm |
| Net Weight | 176 KG |
| Gross Weight | 190 KG |
Laser Delivery System
| Specification | Details |
|---|
| Fiber Cable Length | 10 Metres |
| Optional Fiber Cable Length | 15 Metres |
| Spot Size / Swing Width | Adjustable up to 15 mm |
| Welding Head | SUP27S Handheld Swing Welding Head |
Welding Performance
| Material | Maximum Welding Thickness |
|---|
| Stainless Steel (SS) | Up to 6 mm |
| Carbon Steel (MS) | Up to 6 mm |
| Galvanized Steel (GI) | Up to 4 mm |
| Aluminium (Al) | Up to 4 mm |
| Brass | Up to 2 mm |
Shielding Gas Specifications
| Specification | Details |
|---|
| Shielding Gas 1 | Argon (Ar) |
| Shielding Gas 2 | Nitrogen (N₂) |
Main Features
High-performance 2KW Raycus Fiber Laser.
Intelligent SUP27S Handheld Swing Welding Head.
Multiple Spot and Pattern Welding Modes.
Touch-Screen Intelligent Control.
Adjustable Laser Power.
Red Light Positioning System.
Integrated Industrial Water Chiller.
Flexible 10-Metre Fiber Cable.
Industrial Metal Welding Applications.
