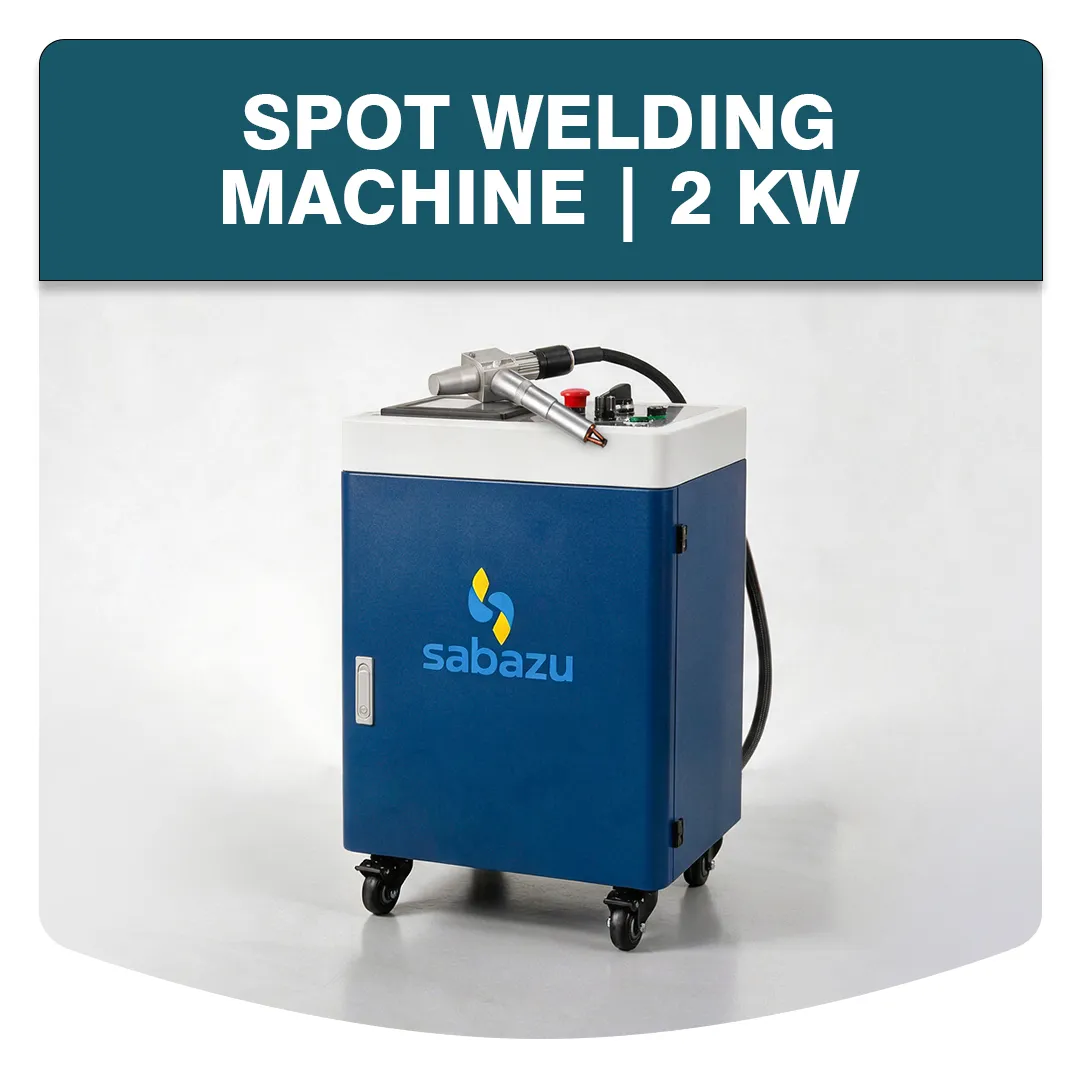

SABAZU 2KW Fiber Laser Welding & Spot Welding Machine – 5-in-1
The SABAZU 2KW Fiber Laser Welding and Spot Welding Machine is an advanced industrial metal fabrication solution designed for precision welding, spot welding and multiple metal processing applications. Powered by a high-performance 2000W Raycus Fiber Laser Source, this machine delivers efficient welding performance, stable operation and excellent welding quality.
Equipped with an intelligent SUP-series dual-pendulum (Dual Galvo) welding head, the machine offers flexible oscillation control and multiple programmable scanning patterns, including circular, rectangular, linear and filling patterns.
The integrated single automatic wire feeder supports 0.8–1.6 mm welding wire, ensuring consistent wire feeding and improved weld quality. Its intelligent water cooling system maintains stable operating temperatures during continuous industrial use.
5-in-1 Multifunctionality:
Laser Welding
Spot Welding
Laser Cleaning
Thin Sheet Metal Cutting
Weld-Bead Cleaning
Key Features:
Powerful 2000W Raycus Fiber Laser Source.
Intelligent Dual-Pendulum (Dual Galvo) Welding Head.
Dedicated Spot Welding Function.
Single Automatic Wire Feeder.
Multiple Programmable Scanning Patterns.
Adjustable Scan Width from 0.1 mm to 5 mm.
Integrated Intelligent Water Chiller.
10-Metre Fiber Cable.
High-speed welding up to 120 mm/s.
Suitable Materials: Stainless Steel, Mild Steel, Carbon Steel, Aluminium, Copper and Brass.
Applications: Stainless steel kitchen equipment, metal furniture, sheet metal fabrication, industrial equipment, automotive components, metal fabrication workshops
| Specification | Details |
|---|
| Brand | SABAZU |
| Model | SH-FLWM-2000-SF |
| Product Type | Fiber Laser Welding & Spot Welding Machine |
| Machine Category | Handheld Fiber Laser Machine |
| Laser Source Brand | Raycus |
| Laser Power | 2000W (2KW) |
| Laser Wavelength | 1064–1080 nm |
| Typical Wavelength | 1080 ± 10 nm |
| Operating Mode | Continuous Wave (CW) |
| Welding Head | Intelligent Dual-Pendulum (Dual Galvo) |
| Welding Head Model | Confirm actual model |
| Oscillation Type | Intelligent Dual Pendulum |
| Scan Patterns | Circular, Rectangular, Linear, Filling and Programmable Patterns |
| Spot Size / Scan Width | 0.1–5 mm |
| Focus Lens | F200 |
| Collimation Lens | F50 |
| Focus Adjustment | -10 mm to +10 mm |
| Maximum Welding Speed | Up to 120 mm/s |
| Stainless Steel Welding Thickness | 0.7–6 mm |
| Carbon Steel Welding Thickness | 0.7–6 mm |
| Aluminium Welding Thickness | Up to 5 mm |
| Copper / Brass Welding Thickness | Generally up to 1 mm |
| Wire Feeder Type | Single Automatic Wire Feeder |
| Wire Diameter | 0.8–1.6 mm |
| Fiber Cable Length | 10 Metres |
| Cooling System | Integrated Intelligent Water Chiller |
| Cooling Method | Full Water Cooling |
| Shielding Gas | Argon (Ar), Nitrogen (N₂) |
| Alternative Gas | Clean Dry Compressed Air (subject to application compatibility) |
| Maximum Gas Pressure | 1 MPa |
| Power Supply | 220V ±10% |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Power Consumption | 4–6 KW (to be confirmed for 2KW configuration) |
| Working Environment | 15°C–45°C |
| Machine Dimensions (L×W×H) | 1000 × 700 × 600 mm |
| Machine Weight | 125 KG |
| Functions | 5-in-1: Welding, Spot Welding, Cleaning, Cutting and Weld-Bead Cleaning |
