1. Product Description

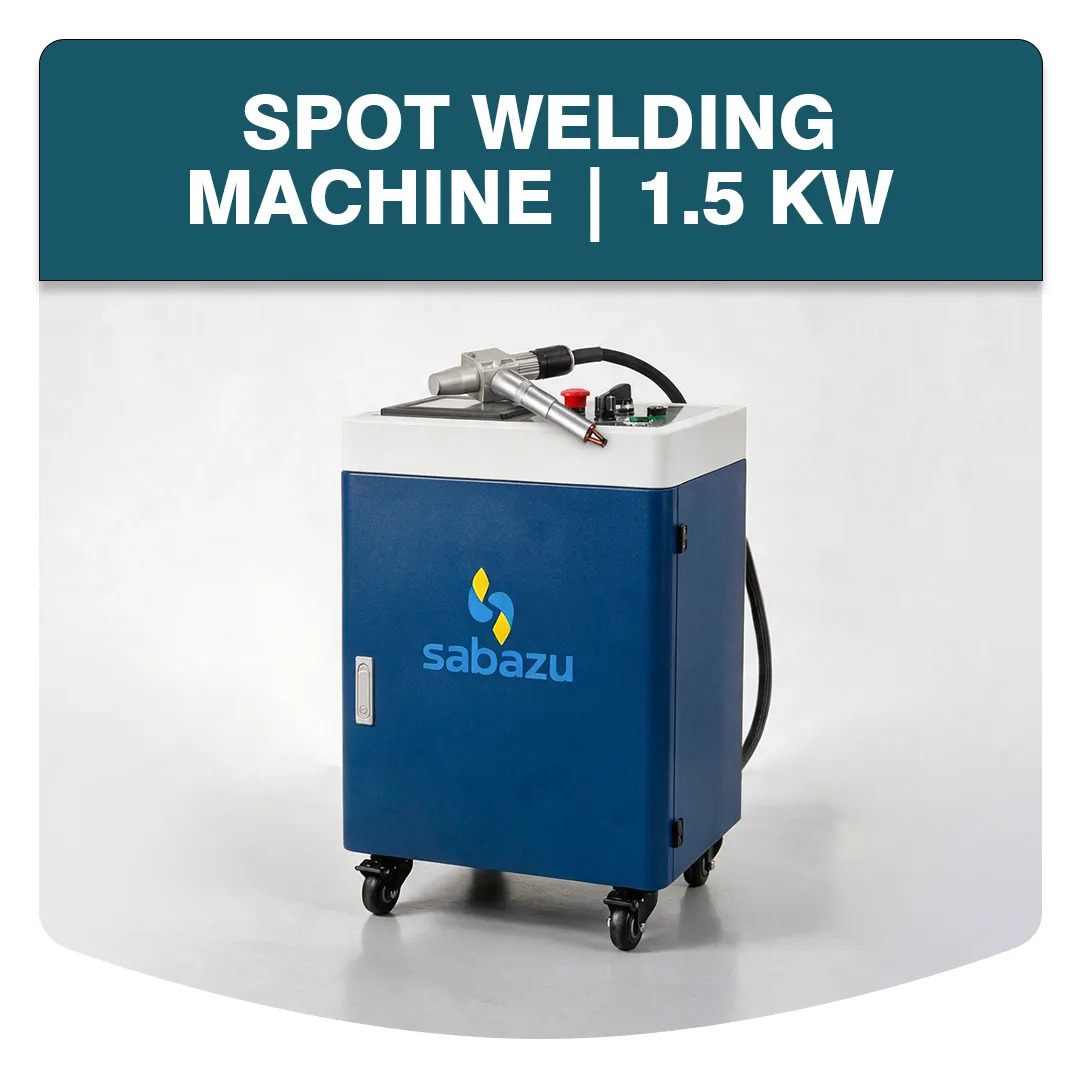

The SABAZU 1.5KW Fiber Laser Spot Welding Machine is an advanced industrial laser welding solution designed for precision spot welding and controlled metal joining applications. Powered by a high-performance 1500W Raycus Continuous Wave (CW) fiber laser source, the machine delivers stable laser output, accurate energy control and consistent welding performance.
Equipped with the SUP27S handheld swing welding head, the machine supports multiple welding patterns, including spot, circular, square, straight-line and spiral welding. Its intelligent touchscreen control system features a welding parameter library, allowing operators to conveniently select and adjust welding settings according to different materials and applications.
The integrated industrial water-cooling system provides efficient cooling for the laser source and welding head, supporting reliable operation during industrial production.
Designed for stainless steel, mild steel, galvanized steel, aluminium and brass applications, the SABAZU SP1500 is suitable for metal fabrication, stainless steel manufacturing, automotive components, electrical enclosures and precision metalworking industries.
2. Detailed Technical Specifications
A. General Specifications
Parameter | Specification |
|---|
Brand | SABAZU |
Model | SP1500 |
Machine Type | Fiber Laser Spot Welding Machine |
Laser Source | Raycus |
Laser Type | Continuous Wave (CW) Fiber Laser |
Laser Power | 1500W (1.5KW) |
Laser Wavelength | 1080 ± 5 nm |
Laser Power Adjustment | 1–100% |
Laser Head | SUP27S Handheld Swing Welding Head |
Welding Modes | Spot, Round, Square, Straight Line and Spiral |
Positioning System | Red Light Indicator |
Control System | Intelligent Touchscreen |
Parameter Management | Built-in Welding Parameter Library |
B. Electrical Specifications
Parameter | Specification |
|---|
Input Voltage | 220V AC |
Power Supply | Single Phase |
Frequency | 50/60 Hz |
Maximum Power Consumption | ≤ 5.4 KW |
Electrical Connection | Single-Phase AC Supply |
C. Cooling System Specifications
Parameter | Specification |
|---|
Cooling Type | Industrial Water Cooling |
Laser Source Cooling | Water Cooled |
Welding Head Cooling | Water Cooled |
Cooling Equipment | Integrated Industrial Water Chiller |
Cooling Operation | Intelligent Temperature Control |
D. Machine Dimensions & Weight
Parameter | Specification |
|---|
Machine Dimensions (L × W × H) | 968 × 660 × 826 mm |
Packing Dimensions | 1425 × 870 × 1080 mm |
Net Weight | 156 KG |
Gross Weight | 180 KG |
E. Laser Delivery System
Parameter | Specification |
|---|
Laser Delivery Type | Fiber Optic Cable |
Standard Fiber Length | 10 Metres |
Optional Fiber Length | 15 Metres |
Laser Head | SUP27S |
Spot Diameter | Adjustable, approximately 0–5 mm |
Positioning | Red Light Indicator |
F. Welding Performance & Material Compatibility
Material | Maximum Indicative Welding Thickness |
|---|
Stainless Steel (SS) | Up to 3.0 mm |
Carbon Steel (CS) | Up to 3.0 mm |
Mild Steel (MS) | Up to 3.0 mm |
Galvanized Steel (GI) | Up to 2.5 mm |
Aluminium (Al) | Up to 2.0 mm |
Brass | Up to 1.5 mm |
G. Shielding Gas Specifications
Parameter | Specification |
|---|
Primary Shielding Gas | Argon (Ar) |
Alternative Shielding Gas | Nitrogen (N₂) |
Gas Supply | External Gas Cylinder |
Application | Weld Pool Protection |
3. Key Features
High-performance 1500W Raycus fiber laser source.
SUP27S handheld swing welding head.
Intelligent touchscreen operation.
Built-in welding parameter library.
Adjustable laser power from 1% to 100%.
Multiple welding patterns for different applications.
Red light positioning assistance.
Integrated industrial water chiller.
Water-cooled laser source and welding head.
10-metre standard fiber optic cable.
Compact industrial machine design.
4. Industrial Applications
Stainless steel kitchen equipment manufacturing.
Commercial kitchen fabrication.
Stainless steel furniture manufacturing.
Electrical panel and enclosure manufacturing.
Automotive component manufacturing.
Metal cabinet production.
Brass and metal component fabrication.
Industrial machinery manufacturing.
