Manufacturer: SABAZU

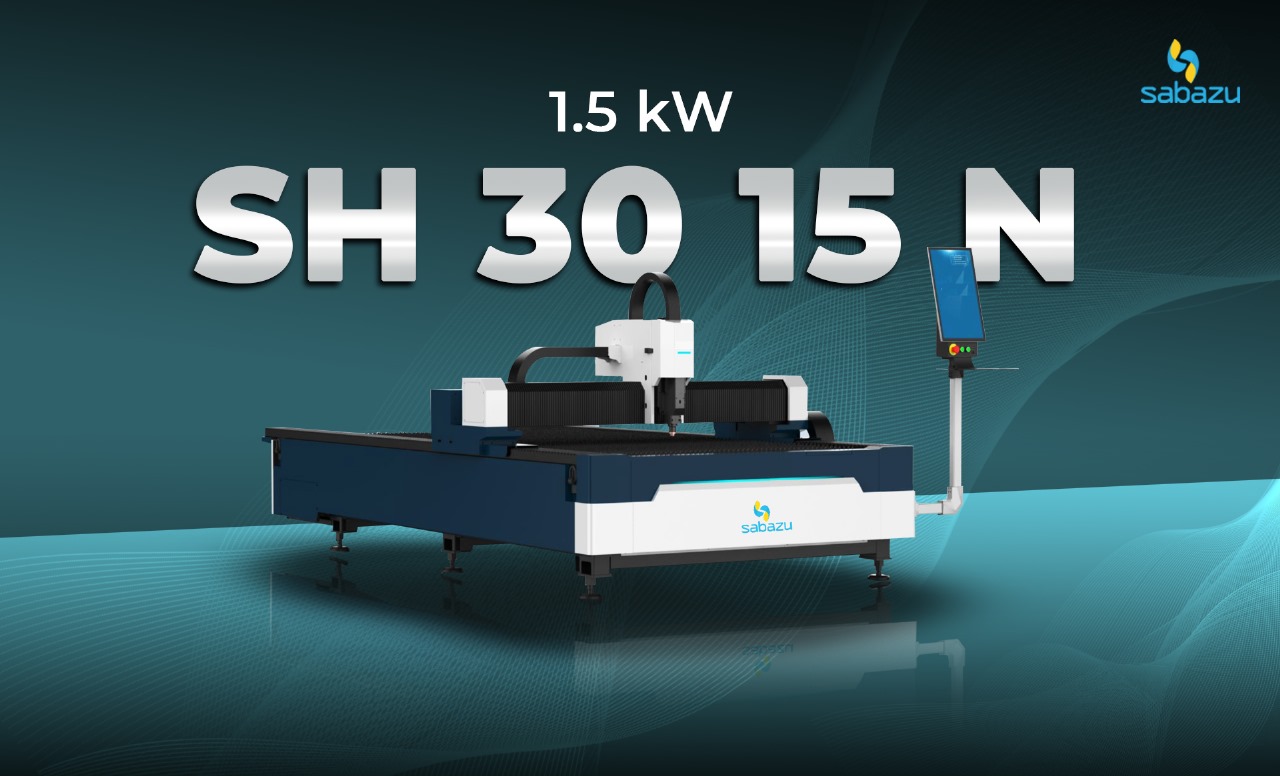

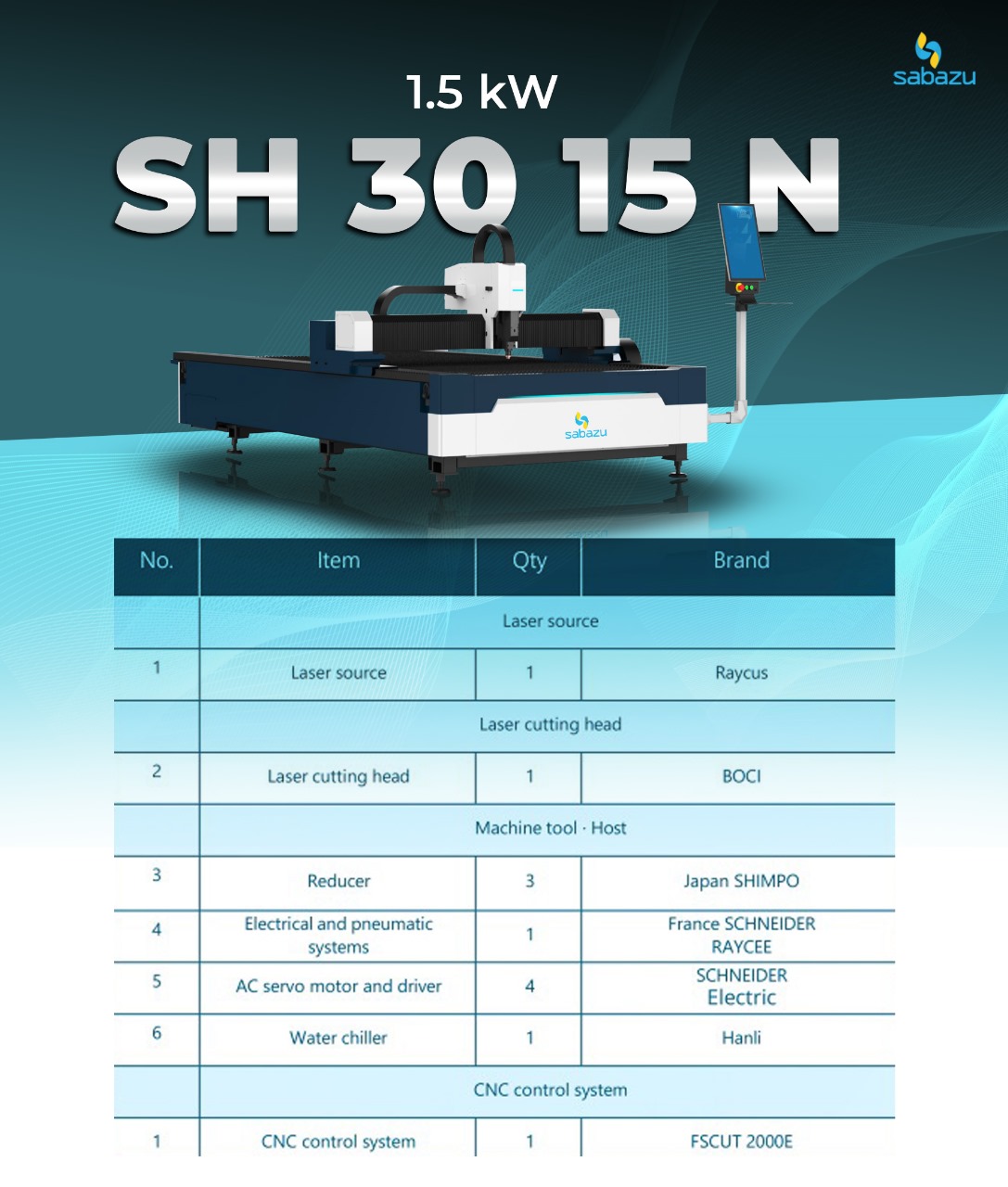

SH 3015 LASER CUTTING MACHINE

Call for pricing

The Sabazu SH3015 Laser Cutting Machine (N-Series) is a technically enhanced yet cost-effective 2024 model engineered for medium-thin metal sheets (up to approximately 20 mm). It features a high-strength semi-hollow machine bed and a high-strength aluminum-alloy beam for rigidity with reduced mass. Equipped with a fully automatic focus mechanism and an intelligent following system, it ensures excellent cut quality even on mildly uneven surfaces. The machine is available in laser powers from 1.5 to 6 kW, supports sheet sizes ranging from 3050×1530 mm to 6050×2030 mm, achieves no-load traverse speeds of up to 100 m/min, and offers a work‐platform load capacity between 700-2000 kg. Its open-style structure and compact footprint make it especially attractive for workshops with limited plant area.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews
Contact Us

Parameter
Work area: 3000×1500 mm	The area over which the machine can work (i.e. the maximum footprint of the piece it can accommodate) is 3 m in one direction and 1.5 m in the other. This gives you roughly 4.5 m² of working surface.
X-axis travel: 1530 mm	The machine can move components (such as a toolhead) 1.53 m along the X direction.
Y-axis travel: 3050 mm	Travel of 3.05 m in the Y direction. This is large—means long shapes or large sheets can be worked on.
Z-axis travel: 80 mm	Vertical movement (depth): only 80 mm. So it doesn’t dive very deep; good for shallow cutting, engraving, marking, etc., but not for deep milling.
X/Y-axis positioning accuracy: ±0.05 mm	When you command the machine to go to a position in X or Y, it may deviate by up to 0.05 mm. For many precision tasks this is reasonably good.
X/Y-axis repeated positioning accuracy: ±0.02 mm	If you repeatedly move to the same coordinates, the repeatability error is ±0.02 mm. This tells you how consistent the X/Y motions are.
Maximum speed: 100 m/min	The machine’s fastest possible movement speed is 100 meters per minute (≈1.67 m/s). Useful to know for throughput / how fast it can travel between points.
Maximum acceleration: 1.0 G	Acceleration up to 1×g (≈9.8 m/s²). Faster acceleration gets you to speed quicker, which is good for reducing non-productive movement time. But higher accelerations stress the machine more (vibrations, wear).
Workbench maximum load: 700 kg	The platform/table can hold up to 700 kilograms safely. If you put more, risk damage or degraded performance.
Dimensions (L×W×H): 4360×2760×1800 mm	External footprint: you need space of about 4.36 m by 2.76 m, and height 1.80 m. Include clearance around for movement/maintenance.
Total weight: between ~1590-1740 kg (depending on power: 1.5-4 kW versions)	Very heavy. Requires a strong foundation, perhaps special floor capacity, and careful transportation / installation.
Phase: Three-phase	Power requirement: three-phase electrical supply, not just single phase, so check your facility power.
Power supply rated voltage: 380 V	You’ll need 380 V supply (common in many industrial settings) to drive the machine.
Frequency: 50 Hz	Power supply frequency; matches mains frequency in many countries (India is 50 Hz). Good.
Total power supply protection level: IP54	Ingress Protection rating (IP54). This indicates the enclosure / machine components have moderate protection against dust ingress and water splashes. Not waterproof or dust-tight but okay for many indoor industrial environments.
