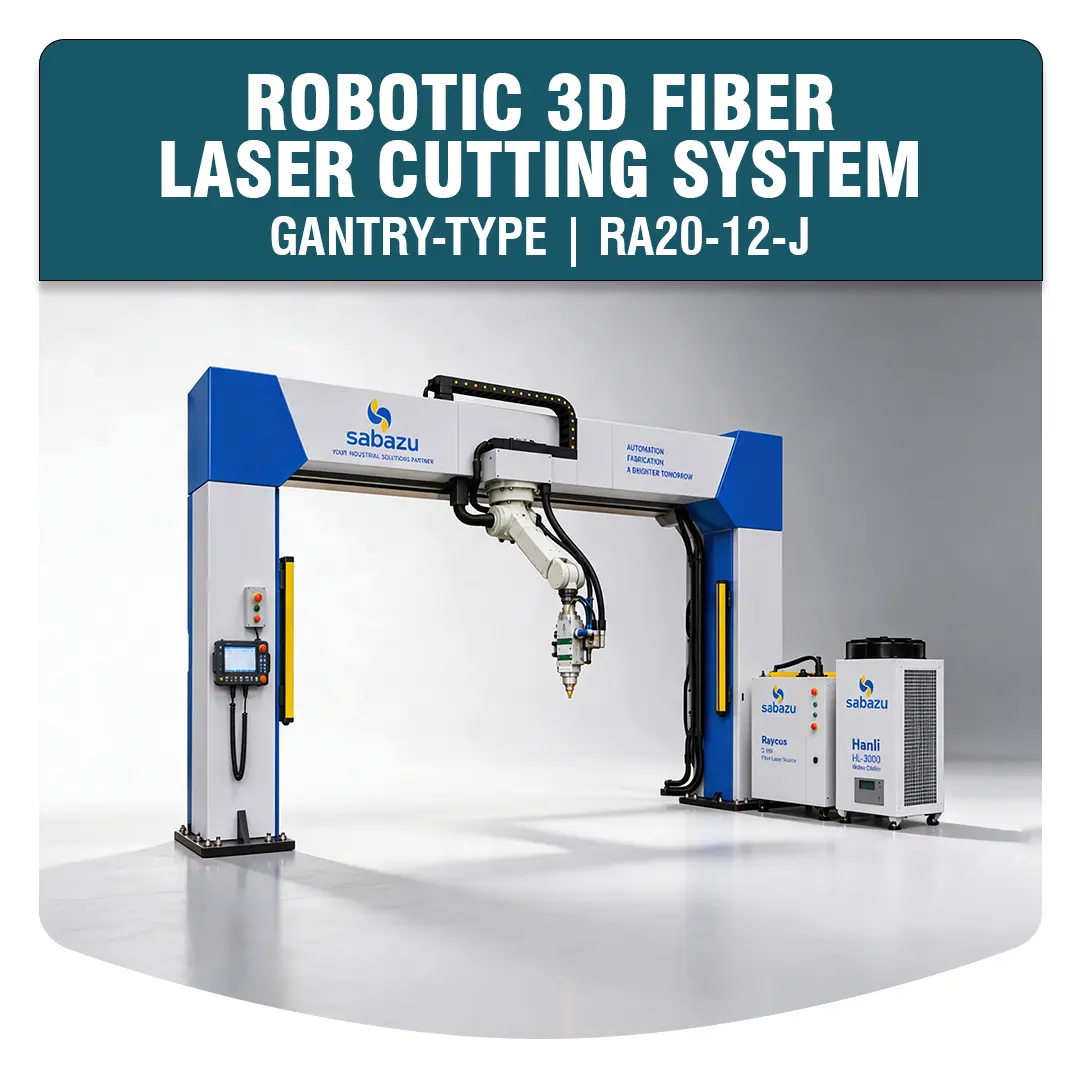

SABAZU RA20-12-J Gantry-Type Robotic 3D Fiber Laser Cutting System is engineered for high-precision 3D cutting of complex, formed and contoured metal components. Its 6-axis robotic movement provides access to multiple cutting orientations, while the 3 kW Raycus CW fiber laser delivers adjustable laser output from 10% to 100%. The system supports DXF, STEP and IGES CAD workflows and offline 3D robot/CAM programming for repeatable production.
Applications: automotive components, formed sheet-metal parts, complex fabricated components, contoured metal structures, and automated 3D metal cutting applications. The catalog specifically establishes the system for formed, contoured and complex sheet-metal components
| Parameter | Description |
|---|
| System Type | Gantry-type robotic 3D fiber laser cutting system |
| Working Envelope | 1,800 × 1,800 × 2,500 mm |
| Robot | SABAZU RA20-12-J, 6-axis |
| Robot Payload | 12 kg |
| Robot Reach | 1.6 m |
| Robot Repeatability | ±0.08 mm |
| Laser Source | Raycus 3 kW CW fiber laser |
| Laser Output | 3,000 W |
| Laser Wavelength | 1080 ± 5 nm |
| Power Adjustment | 10–100% |
| Laser Head | RayTools |
| Fiber Interface | QBH |
| Collimation | F100 |
| Focusing | F200 |
| Auto-Focus Range | ±32 mm |
| Cutting Gas Pressure | Up to 25 bar |
| Cooling Gas Pressure | Up to 5 bar |
| Chiller | Hanli HL-3000 or equivalent |
| Cooling Capacity | Approx. 8.7 kW |
| Chiller Water Flow | Approx. 33–36 L/min |
| Chiller Supply | 220 V, 50 Hz, 1 phase |
| Assist Gases | Oxygen / Nitrogen / Compressed Air |
| Main Electrical Supply | 380 V, 3-phase, 50 Hz recommended |
| Programming | Offline 3D robot/CAM programming |
| CAD Input | DXF / STEP / IGES |
| Workpiece Positioning | Dedicated fixture / rotary positioning fixture |
| Laser Safety | Class 4 laser; enclosed/interlocked operation required |
