Raytools Ceramic Ring BS12K, BS15K, BS20K

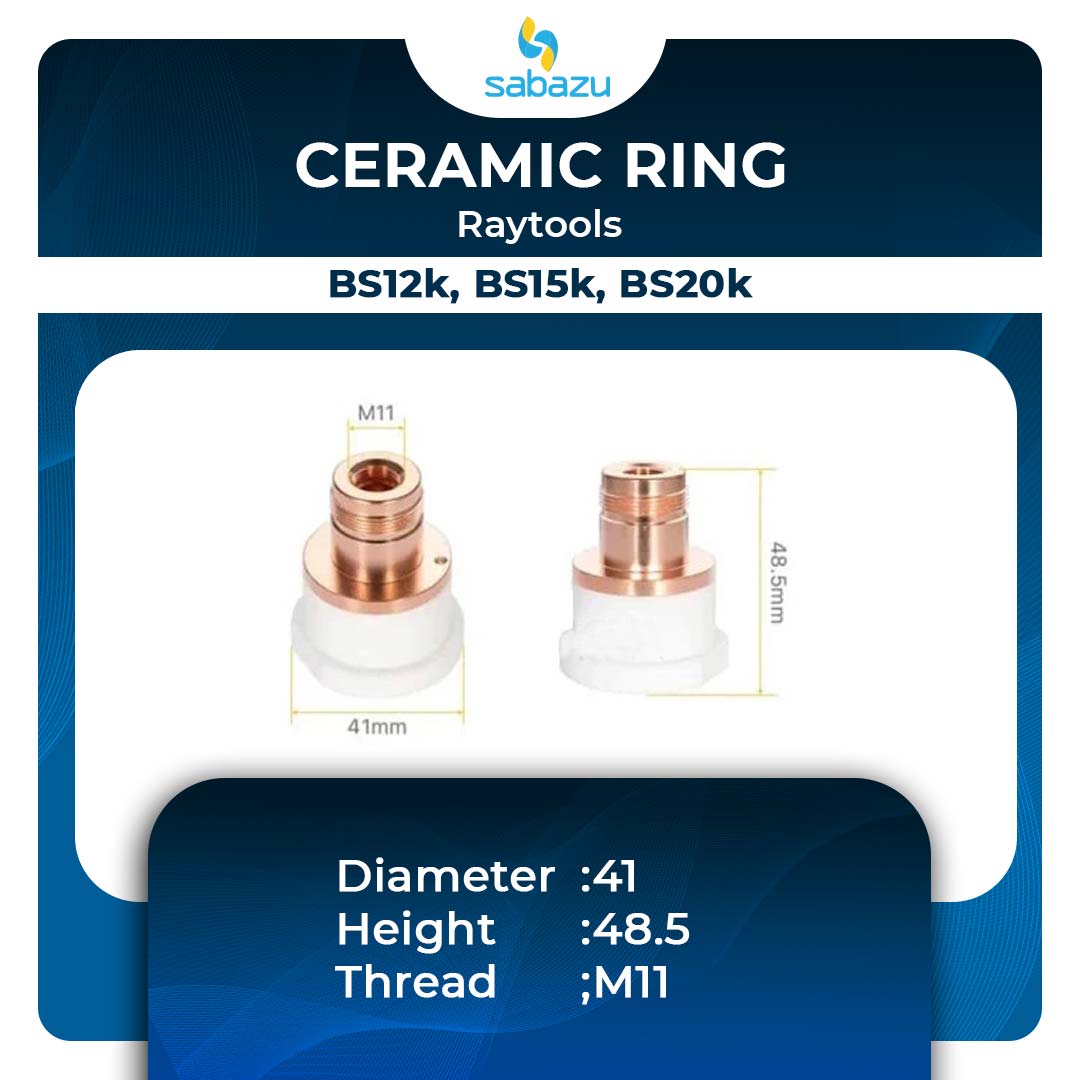

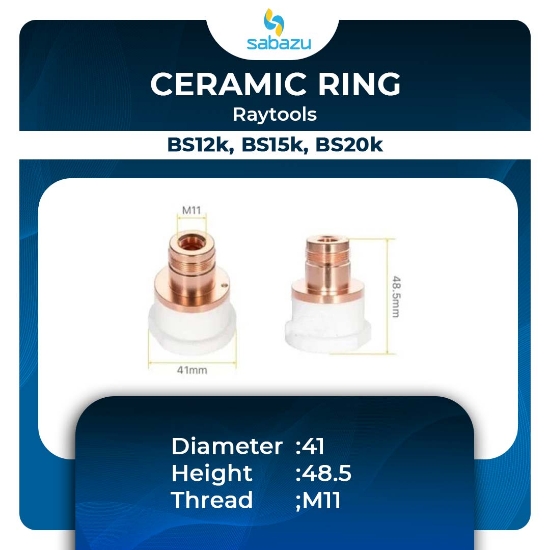

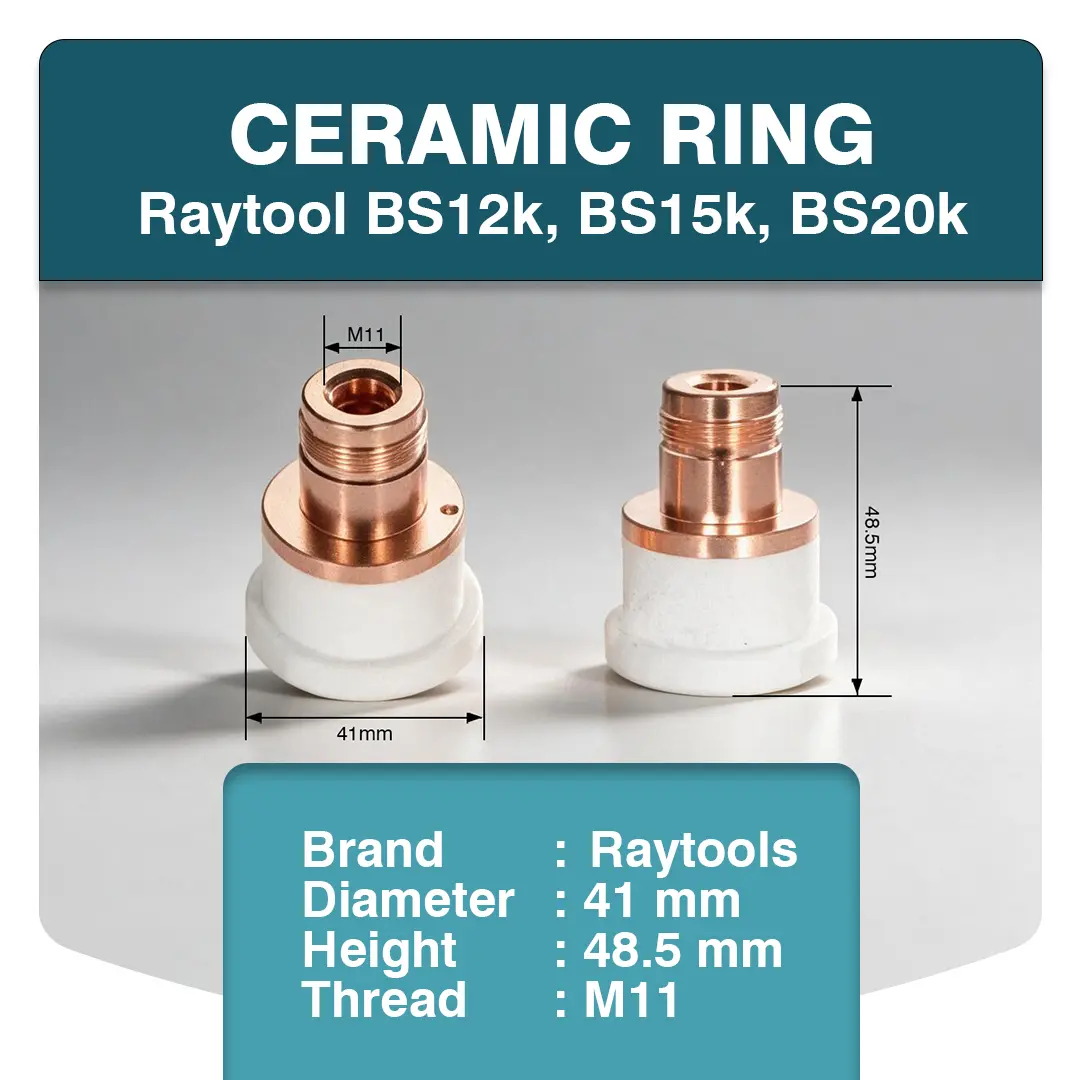

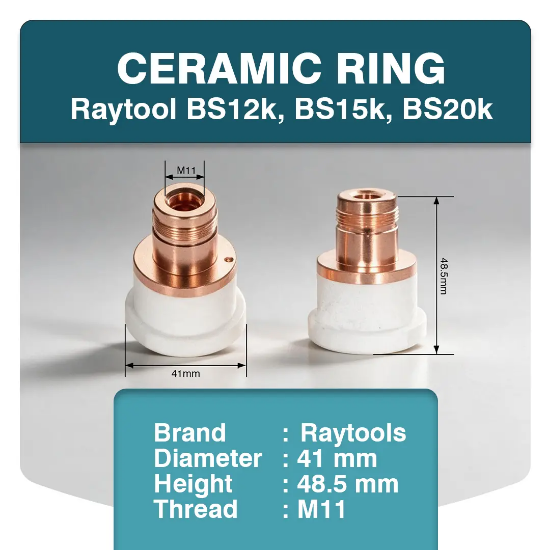

The Raytools Ceramic Ring BS12K, BS15K, BS20K is a precision ceramic component designed for use with compatible Raytools laser cutting head assemblies. It plays an important role in maintaining proper nozzle positioning, electrical insulation, and stable operation during laser cutting processes. With a 41 mm diameter, 48.5 mm height, and M11 thread, this ceramic ring is designed for accurate installation and reliable performance in compatible systems.
Features
- Precision-engineered ceramic construction.
- Designed for compatible Raytools BS12K, BS15K, and BS20K laser cutting heads.
- Diameter: 41 mm.
- Height: 48.5 mm.
- Thread: M11.
- Provides reliable electrical insulation between components.
- Supports accurate and stable nozzle positioning.
- Suitable for demanding laser cutting environments.
- Designed for replacement and maintenance applications.
Applications
The ceramic ring is used in fiber laser cutting head assemblies where accurate nozzle positioning and electrical insulation are required. It is suitable for metal cutting applications using compatible Raytools laser cutting systems. The component can be used during routine maintenance or as a replacement for a worn or damaged ceramic ring.
Compatibility
The Raytools Ceramic Ring is intended for compatible BS12K, BS15K, and BS20K laser cutting head assemblies. Before installation, the machine or cutting-head model, ceramic ring dimensions, and M11 thread specification should be checked to ensure proper compatibility and fit.
Benefits
- Helps maintain stable nozzle alignment.
- Supports consistent laser cutting performance.
- Provides dependable insulation within the cutting head assembly.
- Precision dimensions allow proper fitting in compatible equipment.
- Suitable as a replacement component for maintenance and repair.
Installation & Maintenance
Proper installation is important to prevent damage to the ceramic component and ensure accurate nozzle alignment. Inspect the ceramic ring regularly for cracks, chips, contamination, or thread damage. Replace the ring if any visible damage or deterioration is found.
Product Specifications
- Product Name: Raytools Ceramic Ring BS12K, BS15K, BS20K
- Component Type: Ceramic Ring
- Application: Fiber Laser Cutting Head
- Compatible Models: BS12K / BS15K / BS20K
- Diameter: 41 mm
- Height: 48.5 mm
- Thread: M11
- Material: Ceramic
- Use: Nozzle positioning, insulation, replacement, and maintenance
Important Note
Compatibility should be confirmed against the exact laser cutting head model and existing ceramic ring specifications before purchase or installation. Dimensions and thread type should match the original component to ensure proper fit and reliable operation.
