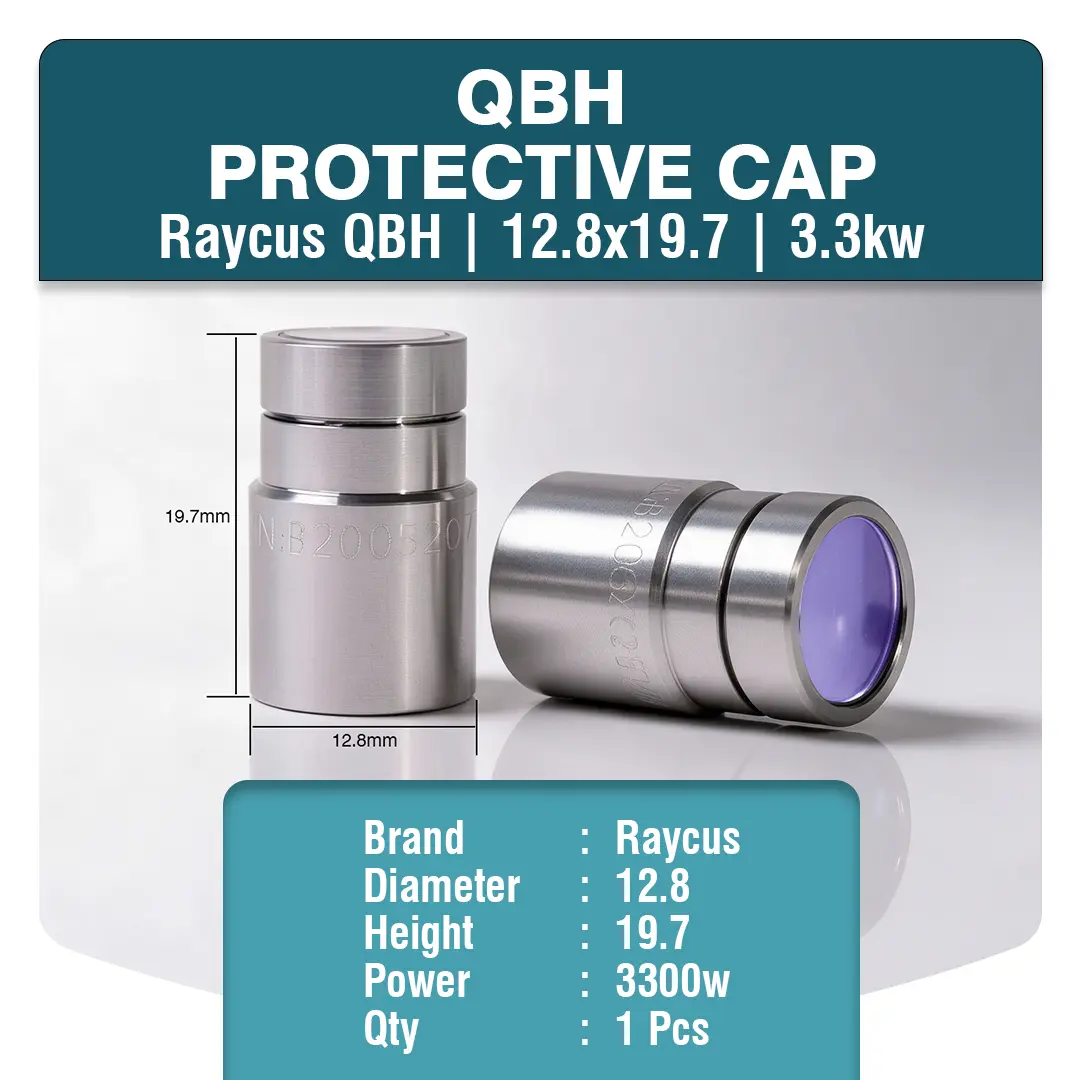

Raycus QBH I 12.8x19.7 (3.3KW)

The Raycus QBH I 12.8x19.7 (3.3KW) is a high-performance laser processing head designed for industrial laser cutting and material processing applications. Manufactured by Raycus, it supports laser power up to 3300W (3.3KW), making it suitable for demanding high-power laser processing operations. The unit features a 12.8 mm diameter and 19.7 mm height, providing a compact and practical configuration for integration into compatible laser systems. It is designed to provide stable, precise, and consistent performance when properly matched with the laser source, optical system, and machine configuration.

Key Features

• Brand: Raycus

• Model: QBH I 12.8x19.7

• Power Rating: 3300W / 3.3KW

• Diameter: 12.8 mm

• Height: 19.7 mm

• Compact and space-efficient design

• Designed for high-power laser processing

• Suitable for precision laser cutting applications

• Supports efficient laser beam transmission

• Suitable for integration into compatible industrial laser systems

• Designed for stable and consistent operation

• Suitable for demanding industrial applications

Applicability

The Raycus QBH I 12.8x19.7 is suitable for industrial laser cutting, metal fabrication, and material processing applications using compatible laser systems up to the specified power rating. It can be used in CNC laser cutting machines, automated laser processing equipment, sheet-metal processing systems, and industrial fabrication machinery.

Typical applications include:

• CNC laser cutting

• Sheet-metal cutting

• Mild-steel processing

• Stainless-steel processing

• Aluminium cutting

• Metal fabrication

• Industrial material processing

• Automated laser cutting systems

• High-power laser processing applications

Actual cutting performance depends on the laser source, focusing optics, nozzle configuration, material type, material thickness, cutting gas, and machine operating parameters.

Compatibility

The Raycus QBH I 12.8x19.7 should be installed only in laser systems that support the corresponding QBH interface, optical configuration, mounting arrangement, and 3.3KW power rating. Before installation, the fibre connector, QBH interface dimensions, optical specifications, focusing components, mounting configuration, cooling requirements, and operating parameters should be verified.

For replacement applications, the laser head should match the existing system's mechanical and optical specifications. Proper compatibility between the laser source, fibre cable, processing head, focusing optics, and machine controller is essential for safe and reliable operation.

Advantages

The compact design allows convenient integration into compatible industrial laser equipment while supporting a relatively high 3.3KW laser power capacity. Its configuration makes it suitable for applications requiring reliable laser beam delivery and precise material processing. When correctly matched with the complete laser system, it can provide consistent cutting performance and dependable operation.

Technical Specifications
