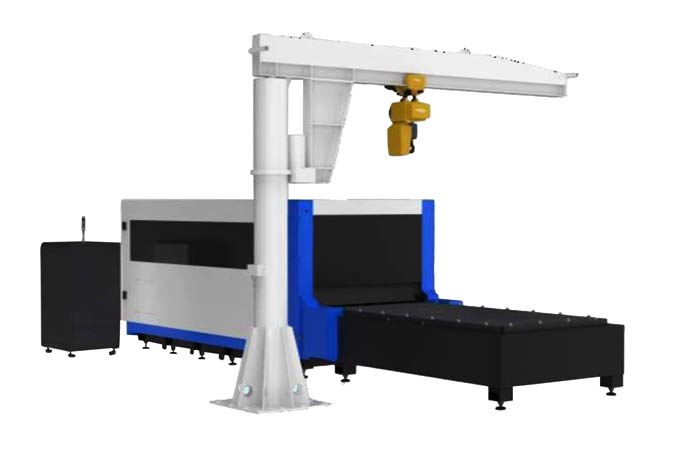

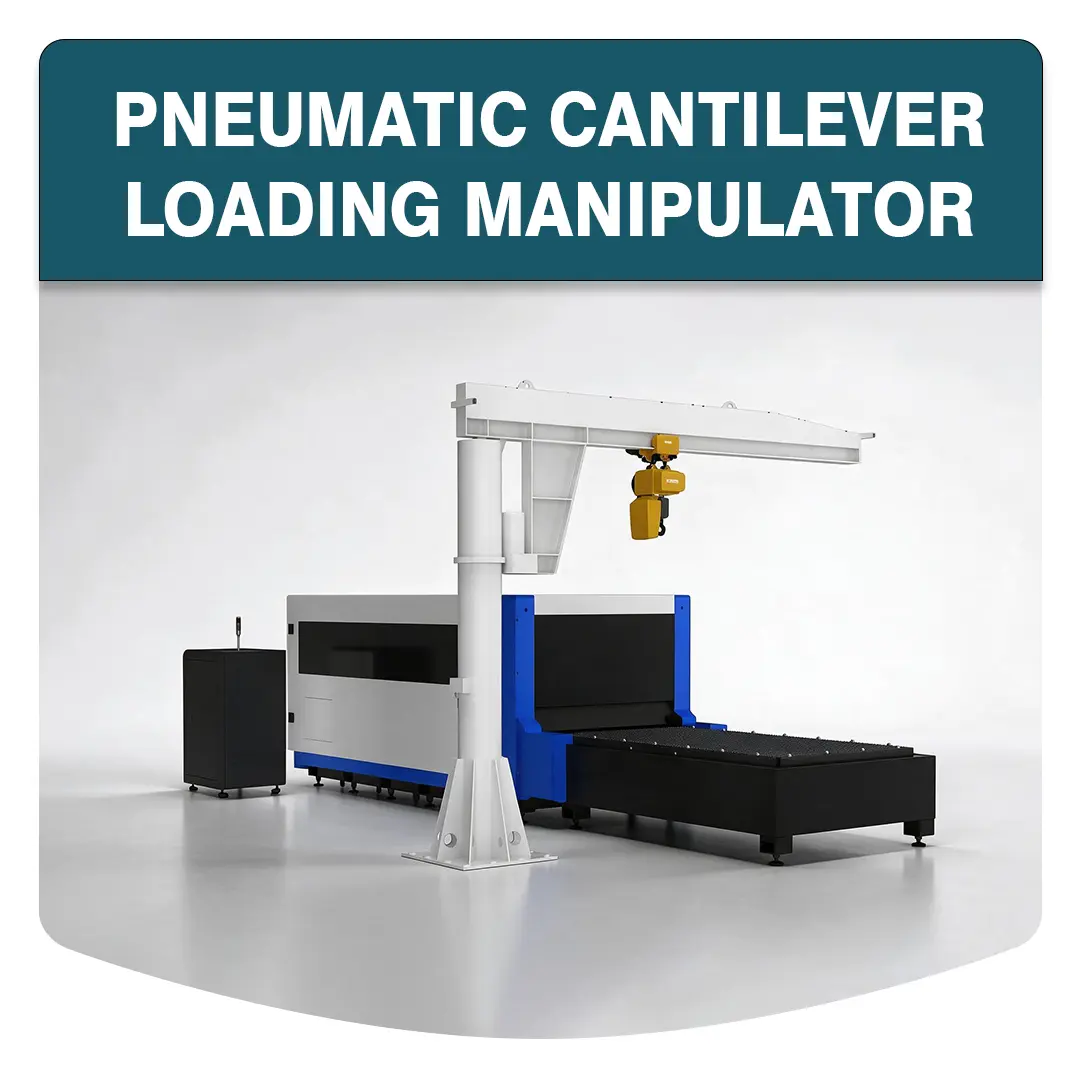

Pneumatic Cantilever Loading Manipulator

1. Introduction to 500 kg Pneumatic Cantilever Feeding Manipulator This machine features a light structure, easy disassembly and assembly, and wide use. It can handle plates up to 2 × 4 meters in size and weighing up to 500 kg. High efficiency and a short handling cycle: When loading, the operator can move the workpiece in space with minimal effort. The manipulator can stop at any position, making handling easy, fast, and consistent. High safety performance: Air cut-off protection and automatic braking device included. If power suddenly fails, the plate remains in place—no drop for a while. Easy removal of plates by the operator. The main components are made of imported brand products, ensuring quality and reliability. 1.1 Detailed Features The loading manipulator column is equipped with imported high-speed silent linear guide rails. The slide table is driven by a high-torque servo. The swing arm mechanism uses a precision servo cylinder to achieve smooth arm movement and ensure the arm never drops or shakes. The swing arm travels a total of 120°. The loading robot has a maximum load capacity of 300 kg at full width.
