SABAZU Plano-Convex Focusing Lens D20F200H4.5
Product Description

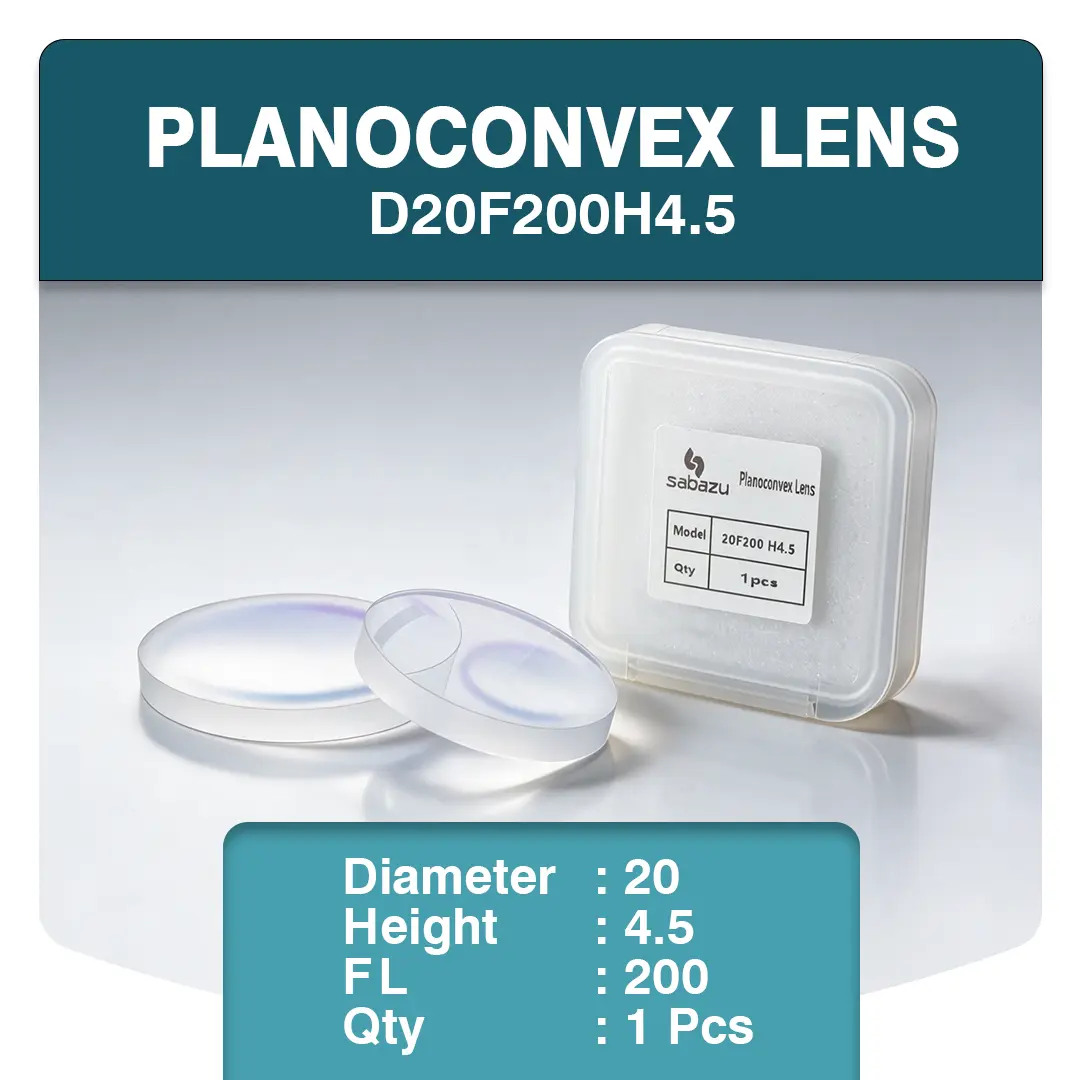

The SABAZU Plano-Convex Focusing Lens D20F200H4.5 is an optical component designed for compatible fiber laser welding and laser cleaning systems. It focuses laser energy onto a designated working area, supporting precise beam delivery and consistent processing performance. Featuring a 20 mm diameter, 200 mm focal length, and 4.5 mm thickness, this lens is intended for laser optical assemblies that require these specific dimensions and optical characteristics.
The SABAZU focusing lens is suitable for industrial applications where accurate laser focusing is essential for welding, cleaning, and related material-processing operations. It can also be used as a replacement component during maintenance when the original equipment specifies the same lens configuration.
Technical Specifications
- Brand: SABAZU
- Product Name: Plano-Convex Focusing Lens
- Model Number: D20F200H4.5
- Lens Type: Plano-convex optical lens
- Diameter: 20 mm
- Focal Length: 200 mm
- Thickness: 4.5 mm
- Application: Fiber laser welding and laser cleaning
- Primary Function: Laser beam focusing
- Installation: Compatible laser optical assembly
Features
- Plano-Convex Design: Features one flat surface and one convex surface for laser focusing applications.
- 200 mm Focal Length: Designed for optical configurations requiring the specified focal length.
- Compact Dimensions: The 20 mm diameter and 4.5 mm thickness support installation in compatible optical assemblies.
- Precision Focusing: Helps concentrate laser energy onto the intended workpiece area when used in a correctly configured optical system.
- Industrial Applications: Suitable for compatible laser equipment used in welding, cleaning, and related material processing.
- Replacement Suitability: Can serve as a replacement lens when its specifications match the original component.
- Optical Performance: Supports consistent focusing when the lens material, coating, wavelength, and operating conditions are appropriate.
Applicability
The SABAZU D20F200H4.5 Plano-Convex Focusing Lens is intended for compatible fiber laser welding machines, handheld laser welding equipment, laser cleaning machines, and industrial laser optical assemblies.
Typical applications include:
- Fiber laser welding of compatible metal components.
- Laser cleaning for removing rust, oxidation, paint, and surface contaminants.
- Industrial surface preparation and material processing.
- Replacement of focusing lenses during laser equipment maintenance.
- Optical systems requiring a 200 mm focal length and the specified lens dimensions.
Actual performance depends on the laser source, beam characteristics, optical configuration, working distance, and processing parameters.
Compatibility
The SABAZU focusing lens may be compatible with fiber laser welding and cleaning heads that specify a 20 mm diameter, 200 mm focal length, and 4.5 mm thickness lens. Compatibility with specific laser head brands and models must be confirmed against the original equipment manufacturer's documentation.
Before purchasing or installing the lens, verify:
- Lens diameter and thickness.
- Focal length and required working distance.
- Optical material and transmission characteristics.
- Anti-reflective coating and supported laser wavelength.
- Mounting arrangement and lens orientation.
- Laser power rating and thermal operating limits.
- Compatibility with the specific laser head and equipment model.
Matching physical dimensions alone does not guarantee optical or mechanical compatibility.
Installation and Handling
Handle the SABAZU lens using clean optical gloves or suitable lens-handling tools. Avoid touching the optical surfaces directly and clean the lens only with approved optical cleaning materials. Install the lens in the correct orientation and mounting position according to the equipment manufacturer's instructions.
Ensure the laser system is switched off and isolated before performing lens replacement or maintenance. Follow the equipment manufacturer's laser safety procedures during installation and operation.
