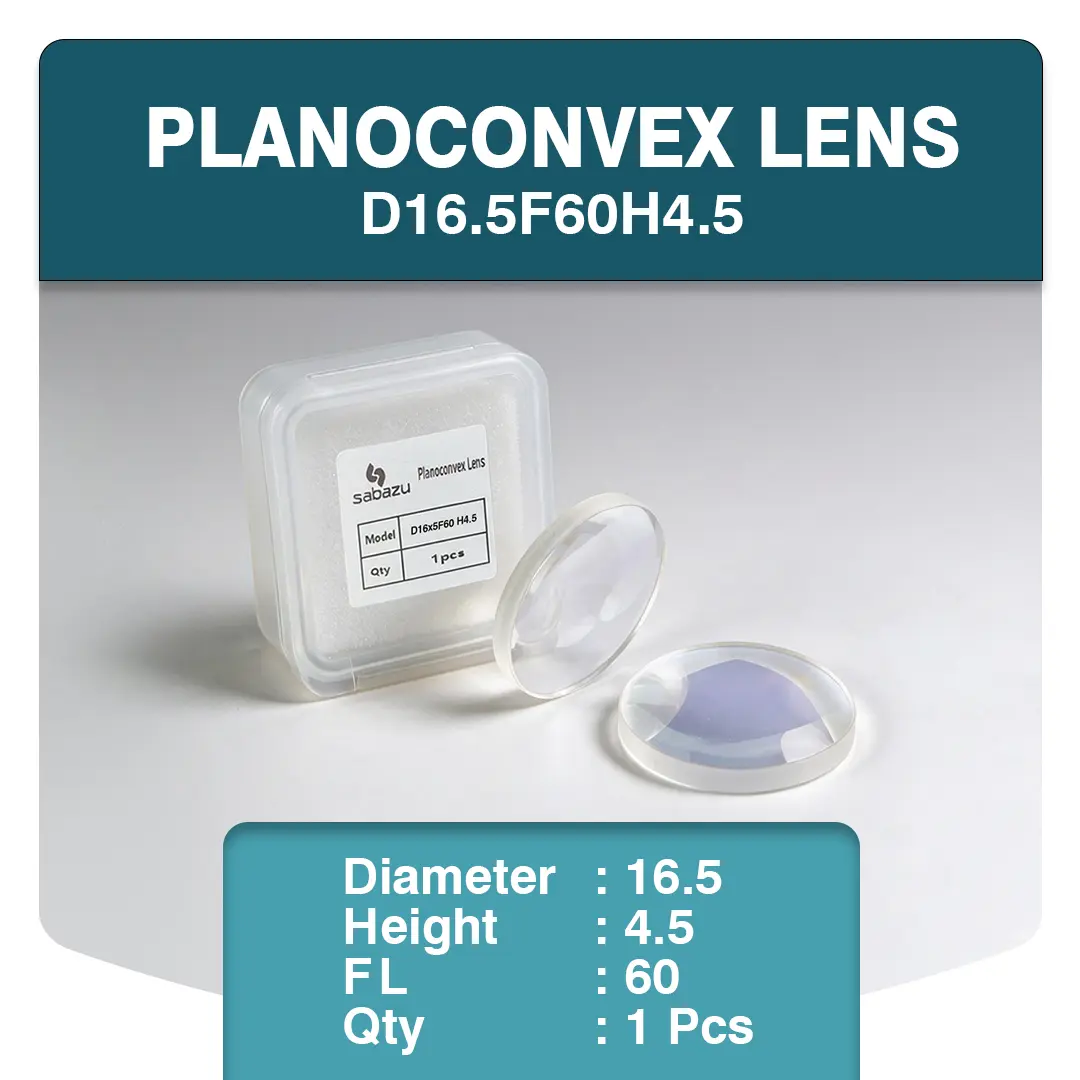

SABAZU Plano-Convex Collimation Lens D16T5F60
Product Description
The SABAZU Plano-Convex Collimation Lens D16T5F60 is an optical component designed for fiber laser welding and laser cleaning applications. It helps collimate and control the laser beam, supporting effective beam delivery in compatible industrial laser systems. With a diameter of 16 mm, a thickness of 5 mm, and a focal length of 60 mm, this lens is suitable for optical assemblies requiring specific collimation parameters.
Technical Specifications
- Brand: SABAZU
- Product Name: Plano-Convex Collimation Lens
- Model Number: D16T5F60
- Diameter: 16 mm
- Thickness: 5 mm
- Focal Length: 60 mm
- Product Type: Laser optical component
- Application: Fiber laser welding and laser cleaning systems
- Primary Function: Laser beam collimation and optical beam control
Features
- Plano-convex optical design for laser collimation applications.
- Compact 16 mm diameter for compatible optical assemblies.
- 5 mm thickness for the specified mounting configuration.
- 60 mm focal length for the intended optical setup.
- Supports precise beam alignment when correctly installed.
- Suitable for replacement and maintenance of compatible laser optical systems.
- Designed for integration into appropriate industrial laser equipment.
Applicability
The SABAZU D16T5F60 Collimation Lens is intended for use in compatible fiber laser welding machines, handheld laser welding systems, laser cleaning equipment, and associated laser optical assemblies. It can be considered for maintenance, servicing, and replacement applications where the existing equipment specifies the same lens dimensions and focal length.
Compatibility
This lens may be suitable for fiber laser welding and cleaning heads that specify the D16T5F60 lens configuration. Compatibility with SUP-series laser heads or other handheld laser systems must be verified against the original equipment manufacturer's specifications.
Before installation, confirm the lens diameter, thickness, focal length, optical material, coating, laser wavelength, mounting arrangement, and equipment model. Matching dimensions alone do not guarantee full optical or mechanical compatibility.
Installation and Handling
Handle the lens with clean optical gloves or suitable lens-handling tools to prevent contamination and surface damage. Clean the optical surfaces only with approved optical cleaning materials. Install the lens in the correct orientation and mounting position according to the equipment manufacturer's instructions.
