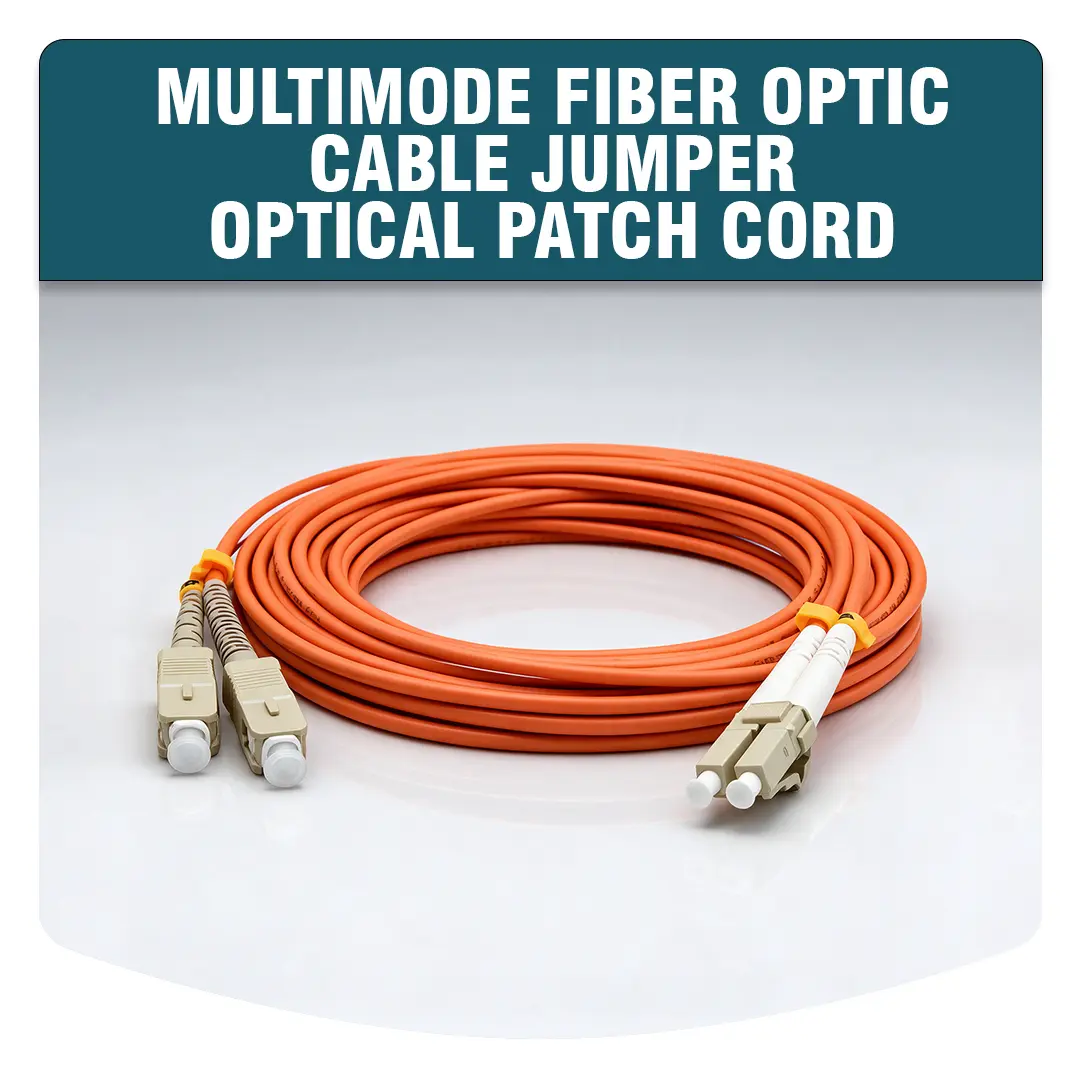

A pre-terminated optical fiber cable designed for reliable data transmission over short distances. It features duplex SC connectors and an orange cable jacket, making it suitable for compatible multimode optical networking equipment, switches, servers and fiber distribution panels.
*Key Features*
- Duplex configuration with two optical fibers
- Pre-terminated SC connectors
- Flexible cable for convenient installation
- Suitable for compatible multimode networking systems
- Available in different lengths and fiber grades
Technical specifications
Parameter Specification
Connector configuration SC–SC, duplex
Fiber type Multimode
Fiber grade OM1 / OM2 / OM3 / OM4 (confirm)
Core/cladding diameter 50/125 µm or 62.5/125 µm
Cable colour Orange
Number of fibers 2
Cable diameter Typically 2.0 mm
Connector polish PC/UPC, depending on model
Operating wavelength Typically 850 nm / 1300 nm
Insertion loss Typically ≤ 0.3 dB per connector, depending on model
Jacket PVC or LSZH, depending on model
Length Available in different lengths
