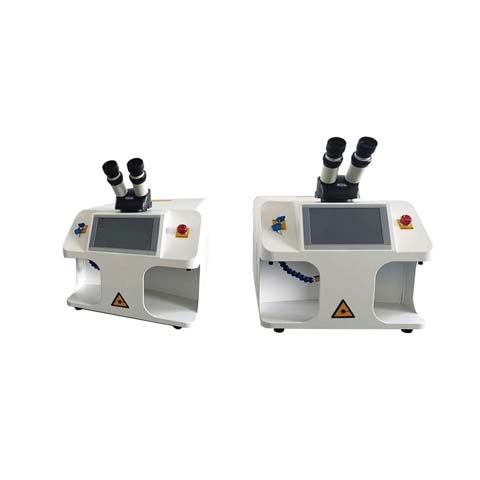

Jewelry Welding Machine — SL-Y100

Jewelry Mini Spot Laser Welder — 60W / 100W This 60W / 100W YAG mini spot laser welder, also known as a portable jewelry laser soldering machine, is specially developed for laser welding of jewelry. It is mainly used for perforating and spot welding of gold and silver jewelry. The laser spot welding process is an important aspect of laser technology applications in jewelry production. Available Models: • 60W • 100W

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews
Contact Us

Specification	Details
Laser Type	1064 nm YAG laser
Nominal Laser Power	100 W – 120 W
Laser Beam Diameter	0.15 – 2.0 mm
Adjustable Beam Diameter	±3.0 mm
Pulse Width	0.1 – 10 ms
Frequency	1.0 – 50.0 Hz (continuously adjustable)
Maximum Laser Pulse Energy	60 J
Host Power Consumption	2 kW
Cooling System	Built-in water cooling
Water Tank Capacity	4 L
Aiming & Positioning	Microscope + CCD camera system
Operating Mode	Touch control
Pump Source	Single lamp
Display Touch Screen Dimensions	137 × 190 mm
Operating Languages	English, Turkish, Korean, Arabic
Electrical Connection	AC 110V/220V ±5%, 50 Hz / 60 Hz
Machine Dimensions (L × W × H)	58 × 37.5 × 44.1 cm
Wooden Package Dimensions (L × W × H)	71 × 56 × 56 cm
Machine Net Weight	40 kg
Machine Gross Weight	54 kg
Operating Temperature	≤ 45 °C
Operating Humidity	< 90% (non-condensing)
Application	Welding & repairing all kinds of jewelry and accessories
