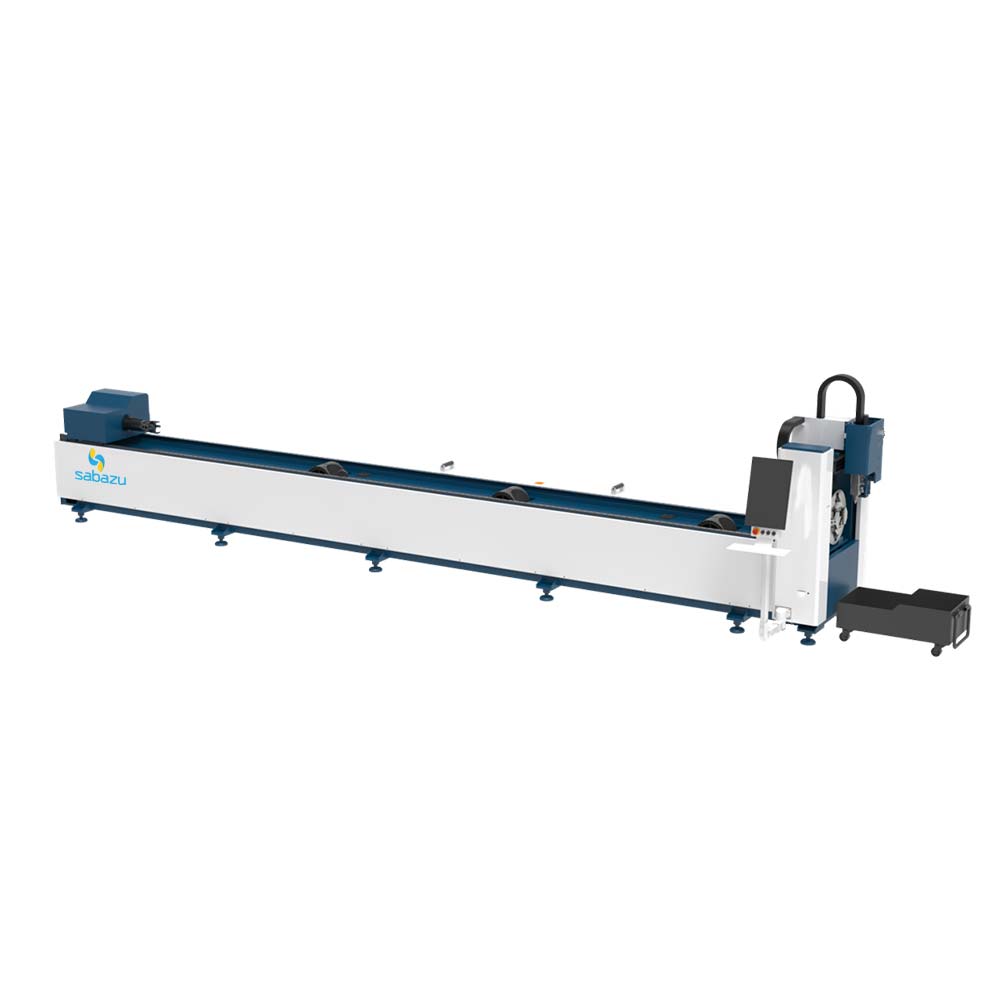

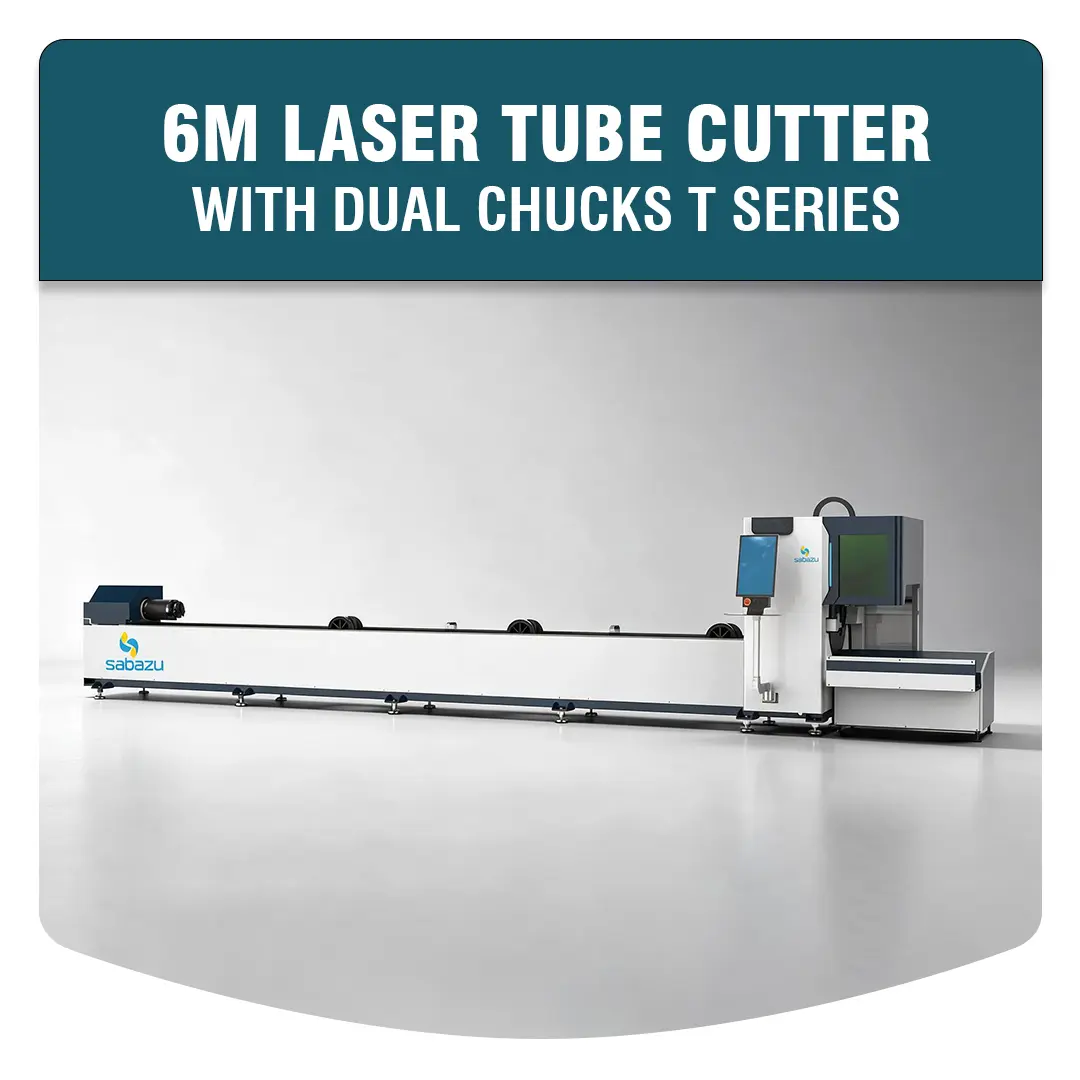

SABAZU Tube Laser Cutting Machines — Flexible Chuck Configurations
The SABAZU range offers rich model options with one, two, three, or four chucks, supporting both straight cutting and 45° bevel cutting. These machines are engineered to handle a diverse variety of tube types — from small and lightweight tubes to large, extra-heavy, and other special-shaped profiles.
Equipped with automatic loading and unloading devices, SABAZU tube laser cutting systems make your workflow smoother and more efficient, reducing manual handling and increasing productivity.
| Main Parameters | SH6012T | SH6016T | SH6020T | SH6024T | SH6035T |
|---|
| Laser Power (kW) | 1.5–3 | 1.5–3 | 1.5–6 | 1.5–6 | 1.5–6 |
| Length of Tube (mm) | 1000–6500 | 1000–6500 | 2000–6500 | 2000–6500 | 2000–6200 |
| Scope of Tube Size (Round) | Φ15–120 | Φ15–170 | Φ20–220 | Φ20–230 | Φ20–360 |
| Scope of Tube Size (Square) | □15×15–120×120 | □15×15–170×170 | □20×20–150×150 | □20×20–230×230 | □20×20–360×360 |
| Max Weight of Tube (kg) | 120 | 160 | 200 | 260 | 500 |
| X/Y-Axis Positioning Accuracy (mm) | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| X/Y-Axis Repositioning Accuracy (mm) | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Max No-Load Speed (m/min) | 150 | 110 | 100 | 100 | 60 |
| Max Rotating Speed of Chucks (r/min) | 180 | 140 | 100 | 100 | 60 |
| Overall Dimensions (L×W×H, mm) | 9100×1800×2100 | 9100×1800×2100 | 9530×1950×2200 | 9530×1950×2200 | 9500×2050×2550 |
| Power Supply | Three-phase 380V, 50Hz/60Hz | Three-phase 380V, 50Hz/60Hz | Three-phase 380V, 50Hz/60Hz | Three-phase 380V, 50Hz/60Hz | Three-phase 380V, 50Hz/60Hz |
