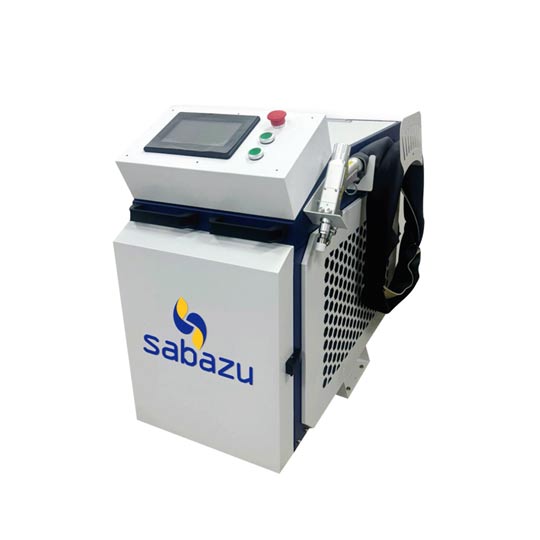

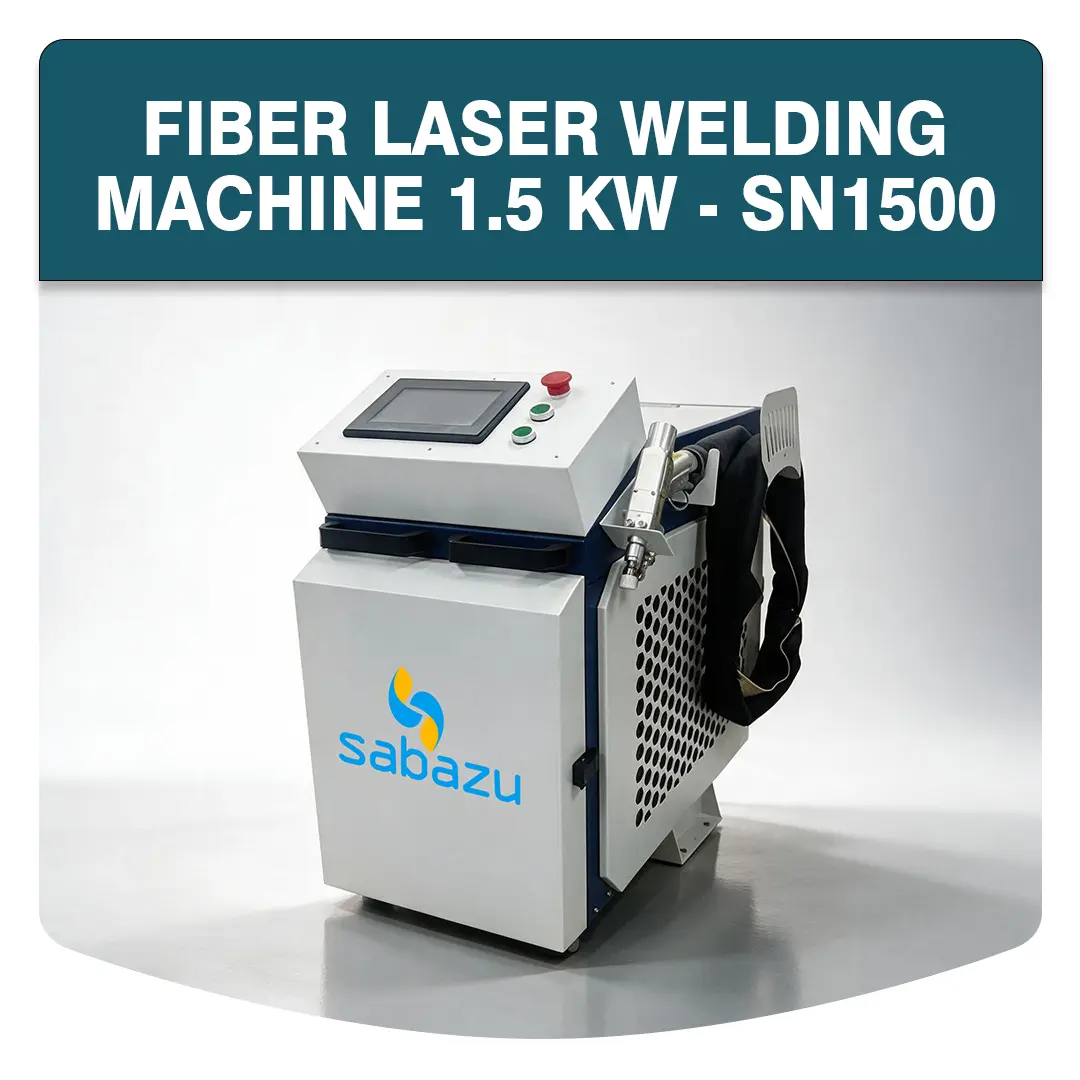

    FIBER LASER WELDING MACHINE 1.5 KW--SN 1500

    The SABAZU SN 1500 Water-Cooled Fiber Laser Welding Machine is a high-performance laser welding solution designed for precision, reliability, and efficiency. Equipped with advanced fiber laser technology and a water-cooled system, this machine delivers stable output and consistent weld quality while minimizing thermal distortion on workpieces. Ideal for a wide range of industrial welding applications, the SN 1500 supports continuous laser operation with adjustable power output and flexible welding parameters. Its robust construction ensures long-term durability, and the integrated control system allows operators to achieve accurate and repeatable welds on metals such as stainless steel, carbon steel, aluminum, and other alloys. Key advantages include: High welding precision with minimal heat-affected zone Stable performance with effective water cooling for extended duty cycles Flexible power adjustment for varied material thicknesses Compact footprint with user-friendly operation The SABAZU SN 1500 is suitable for manufacturing, fabrication, automotive, aerospace, and other sectors requiring quality laser welding performance.|
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    ParameterSpecification
    Fiber Length10 m (option: 20 m)
    Input VoltageSingle-phase 220 V, 24 A
    Power Consumption9 kW
    Working ModeContinuous Laser
    Laser Source Output MethodQBH
    Power Adjustment Range5 %–100 %
    Welding Thickness5 mm
    Wobble Frequency & Width120 Hz, 5 mm up to 300 Hz
    Feeding Wire Diameter0.8–1.8 mm
    Mechanical Dimensions (L×W×H)1590×820×1500 mm
    Net Weight125 kg
    Working Environment Temperature10–45 °C





    ComponentPower Consumption
    Laser Source2.5 – 3.0 kW
    Water Chiller1.0 – 1.5 kW
    Control System + Wire Feeder0.3 – 0.5 kW
    🔹 Total Running Power≈ 4 – 5 kW
