Manufacturer: SABAZU

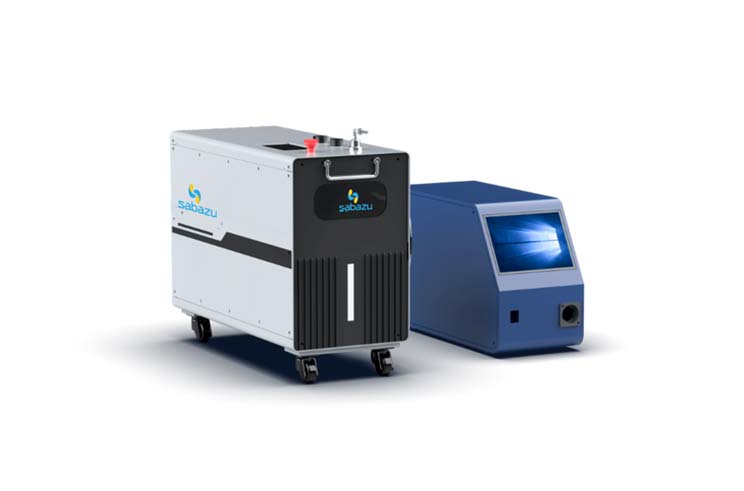

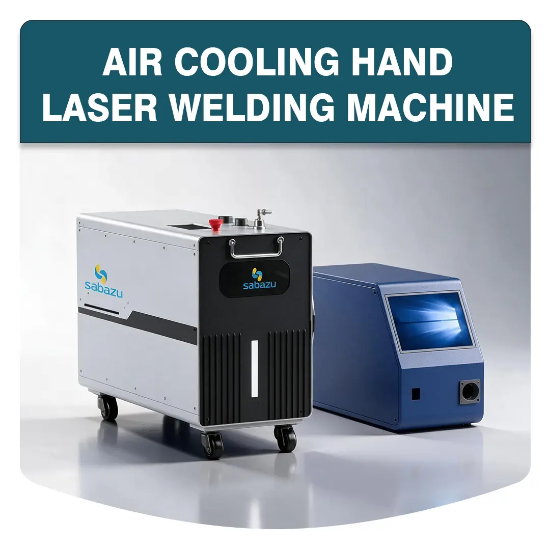

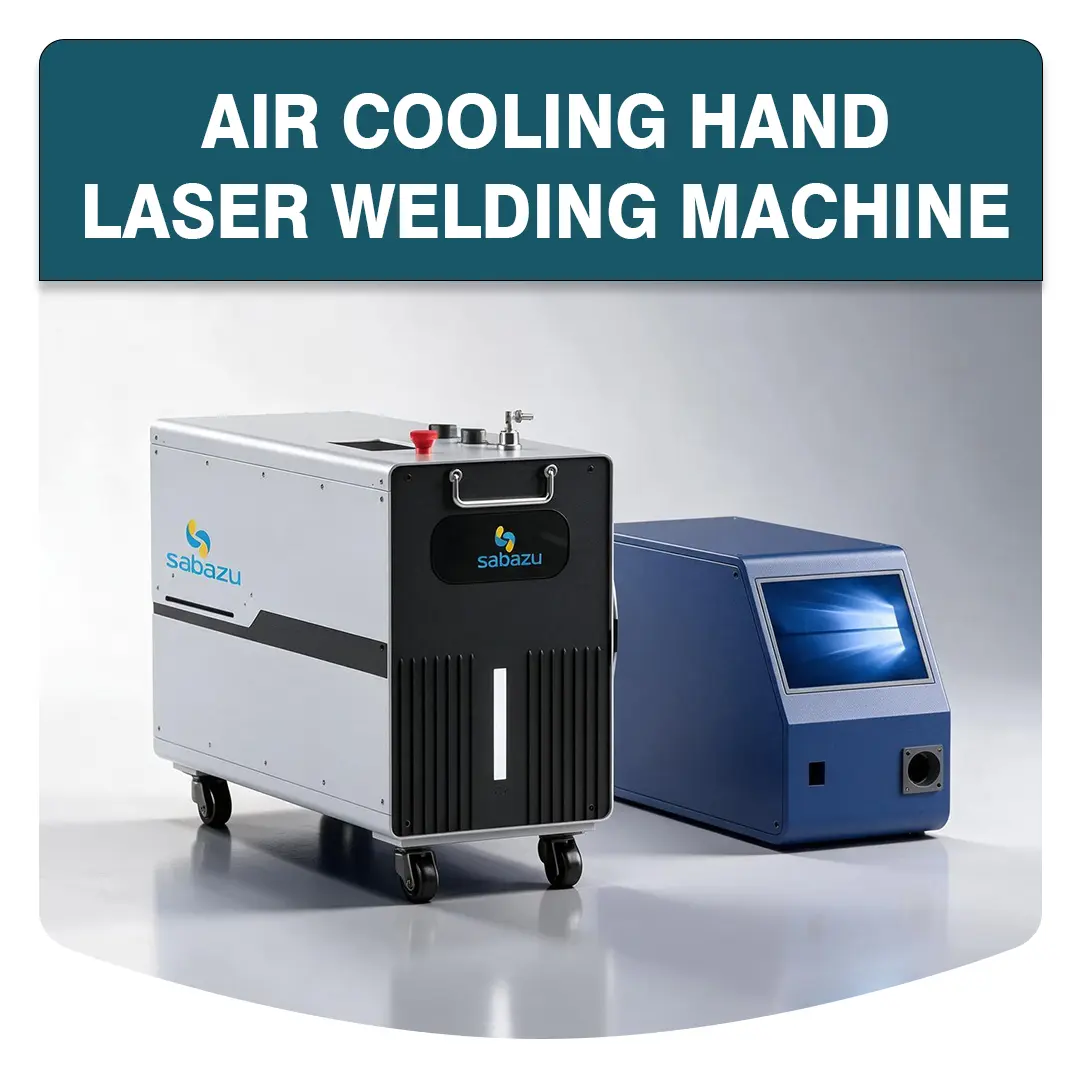

AIR COOLING HAND LASER WELDING MACHINE

Air-Cooling Handheld Laser Welding Machine The Air-Cooling Handheld Laser Welding Machine is a compact, high-performance solution designed for efficient and precise welding of sheet metals. Engineered with advanced intelligence and smart connectivity, this system ensures stable operation, enhanced safety, and superior welding quality without the need for complex water-cooling infrastructure. Key Features & Advantages Air-Cooled Laser Source Independent research and development ensure stable performance with effective heat dissipation, eliminating the need for water chillers. Multi-Function Laser Welding Head Supports 4-in-1 operations: welding, cutting, cleaning, and weld seam cleaning, offering versatility for various applications. Safe & Efficient Air-Cooling System High-efficiency forced-air cooling ensures continuous operation and long service life. Compact & Portable Design Lightweight, space-saving structure suitable for workshops with limited space and on-site applications. Intelligent Control System Real-time monitoring with clear parameter display and safety alarms for temperature and system status. Smart Connectivity One-click connection with robotic or automated systems via standard I/O interface for automated laser welding applications. Enhanced Welding Quality Delivers smooth weld seams, minimal deformation, high strength, and consistent results. Applications Sheet metal fabrication Stainless steel, carbon steel, aluminum welding Cabinet, enclosure, and frame manufacturing Automotive, electrical, and general fabrication industries

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews
Contact Us

Specification	SH3S	SH4S	SH5S	SH6S	SH7S
Laser Power Regulation	10%–100%	10%–100%	10%–100%	10%–100%	10%–100%
Wire Feeding Diameter	0.8–1.6 mm	0.8–1.6 mm	0.8–1.6 mm	0.8–1.6 mm	0.8–1.6 mm
Weld Splicing Requirements	Self-fusion welding: ≤15% of plate thickness & ≤0.5 mm	Same	Same	Same	Same
Filling wire welding	≤1.2 mm	≤1.2 mm	≤1.2 mm	≤1.2 mm	≤1.2 mm
Net Weight	40 kg	45 kg	50 kg	55 kg	60 kg
Wire Feeder Net Weight	—	—	13.2 kg	—	—
Packing Weight	66 kg	71 kg	76 kg	81 kg	80 kg
Net Size	540 × 825 × 514 mm	670 × 335 × 590 mm	670 × 335 × 590 mm	650 × 347 × 555 mm	650 × 347 × 555 mm
Wire Feeder Net Size	560 × 250 × 350 mm	—	—	—	—
Packing Size	870 × 520 × 960 mm	—	—	—	—
Welding Thickness	≤3 mm	≤4 mm	≤5 mm	≤6 mm	≤7 mm
Total Length of Welding Gun Wire	5 m (wire feeding 5 m)	7 m (wire feeding 5 m)	7 m (wire feeding 5 m)	7 m (wire feeding 5 m)	7 m (wire feeding 5 m)
Welding Gun Weight	≤0.7 kg	≤0.7 kg	≤0.7 kg	≤0.7 kg	≤0.7 kg
Total Power	3 kW	4.5 kW	5.5 kW	6.5 kW	8 kW
Total Power Line Length	5 m	5 m	5 m	5 m	5 m
System Language	Chinese, English, Korean, Russian, Japanese, German, French, etc.	Same	Same	Same	Same
Voltage/Frequency	Standard single-phase 220V 50/60Hz	Same	Same	Same	Same
